Home >> Chevy Truck >> 2000 >> S10/T10 P/U 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Seat Temperature Control Module

Seat Temperature Control Module

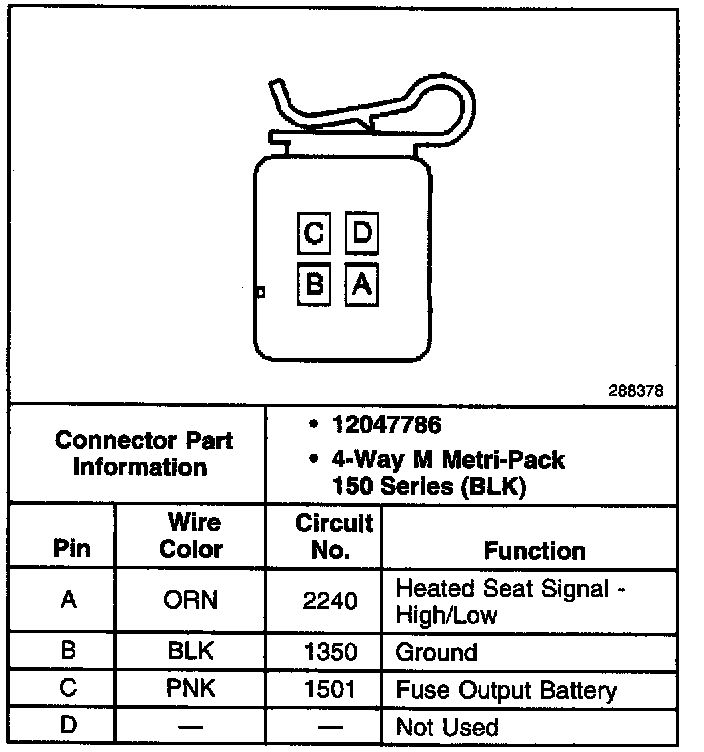

Seat Heater Module,LH & RH Connector:
