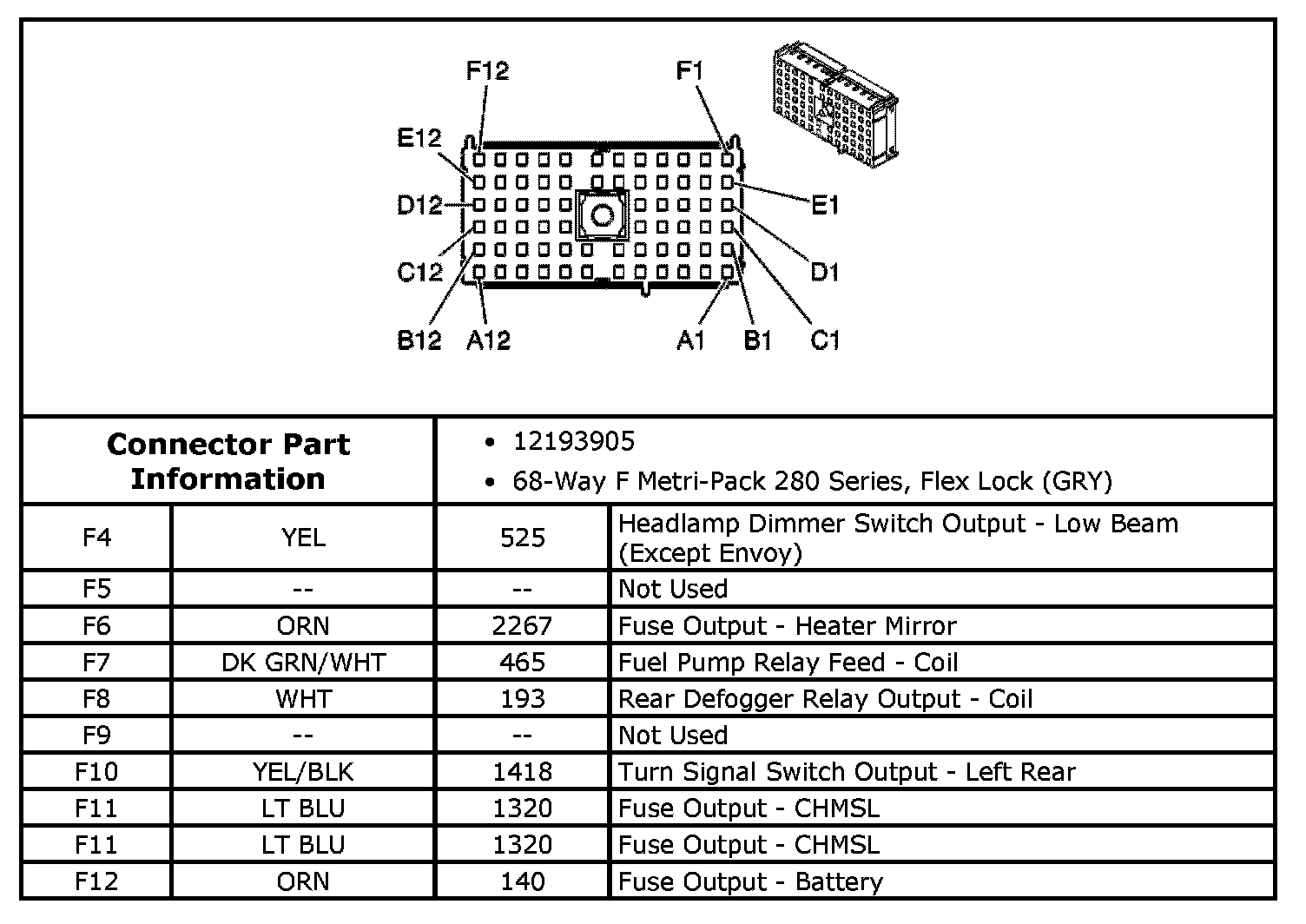

Underhood Fuse Block Connector C1
Underhood Fuse Block Connector C1
UNDERHOOD FUSE BLOCK
CONNECTOR C1
