Home
>>
Chevy Truck
>>
2000
>>
S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>

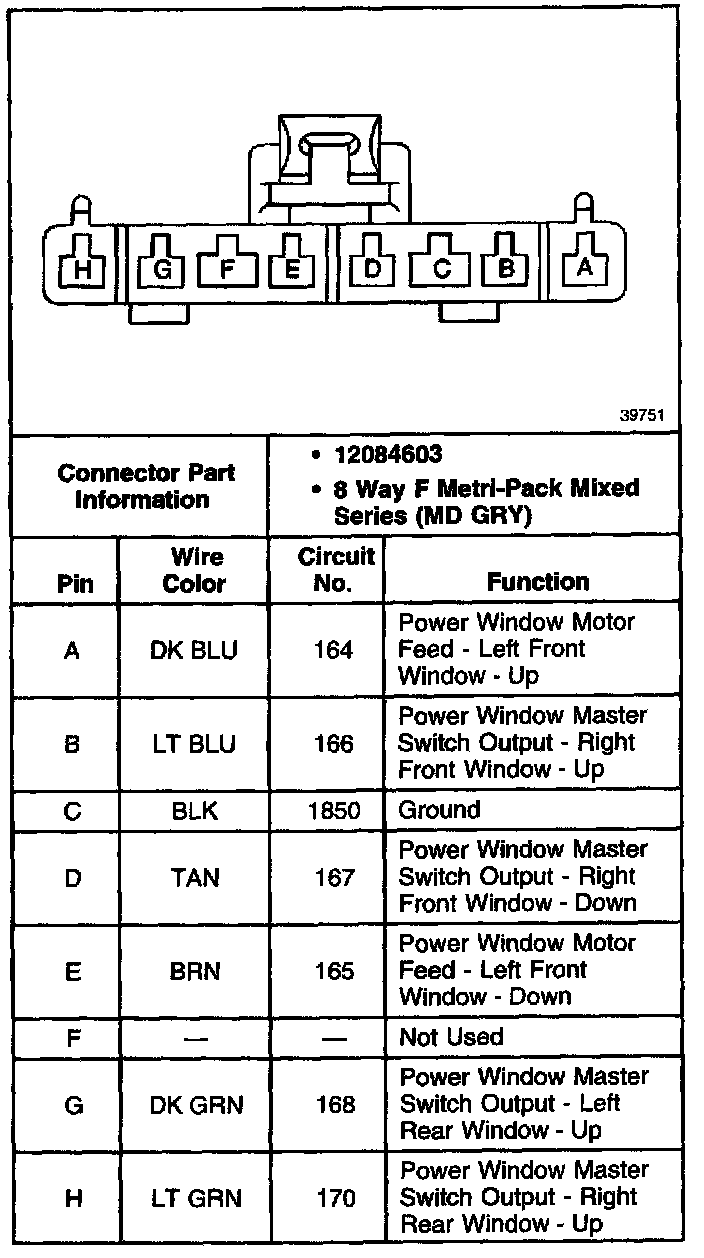

Door Lock And Side Window Switch, LH, Connector C2
Door Lock And Side Window Switch, LH, Connector C2
Door Lock And Side Window Switch, LH, Connector C2:
