S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fog/Driving Lamp
>>
System Diagram
>>
Fog Lamp, RH Connector
Fog Lamp, RH Connector

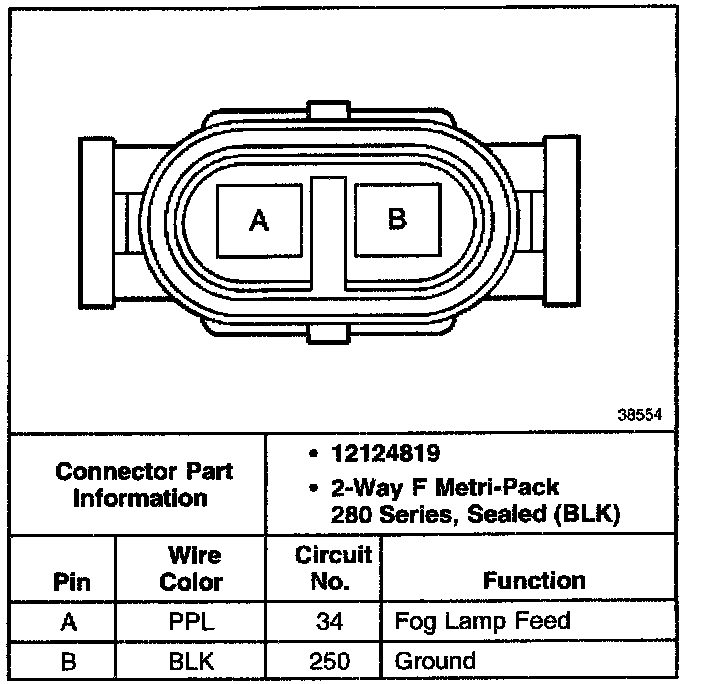

Fog Lamp, RH Connector (Except Bravada Or Envoy):
