Home
>>
Chevy Truck
>>
2000
>>
S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Canister Purge Solenoid
Canister Purge Solenoid

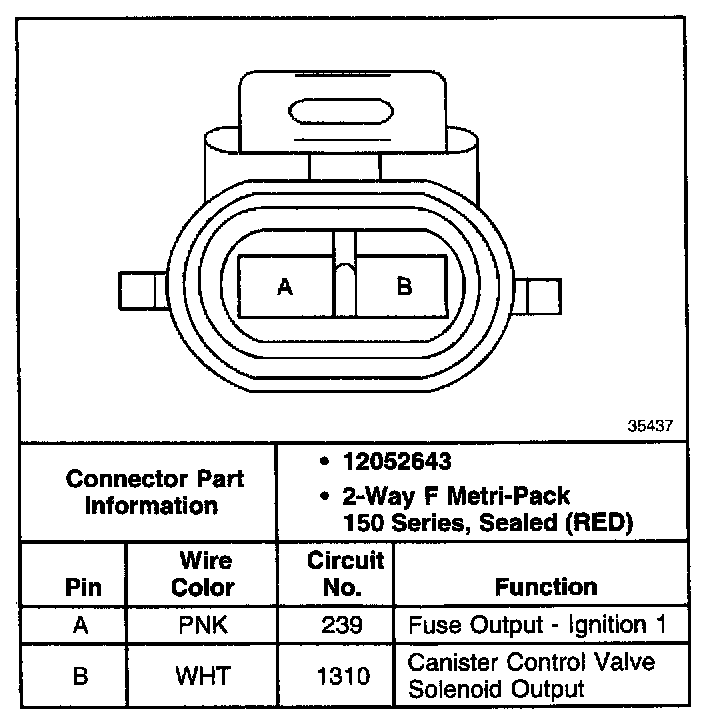

Evaporation (EVAP) Emission Canister Control Valve Connector:
