Chevy Truck
>>
2000
>>
S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Headlamp Washer Pump
>>
Diagrams
>>
Connector Views
Connector Views

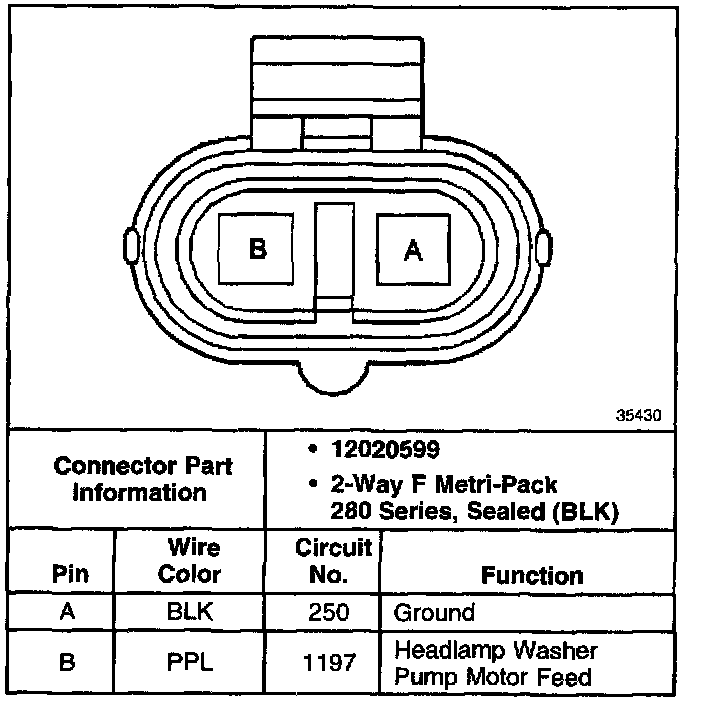

Headlamp Washer Pump Motor (Export Only):
