Chevy Truck
>>
2000
>>
S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>
Underhood Fuse Block
>>
Uplevel
Uplevel

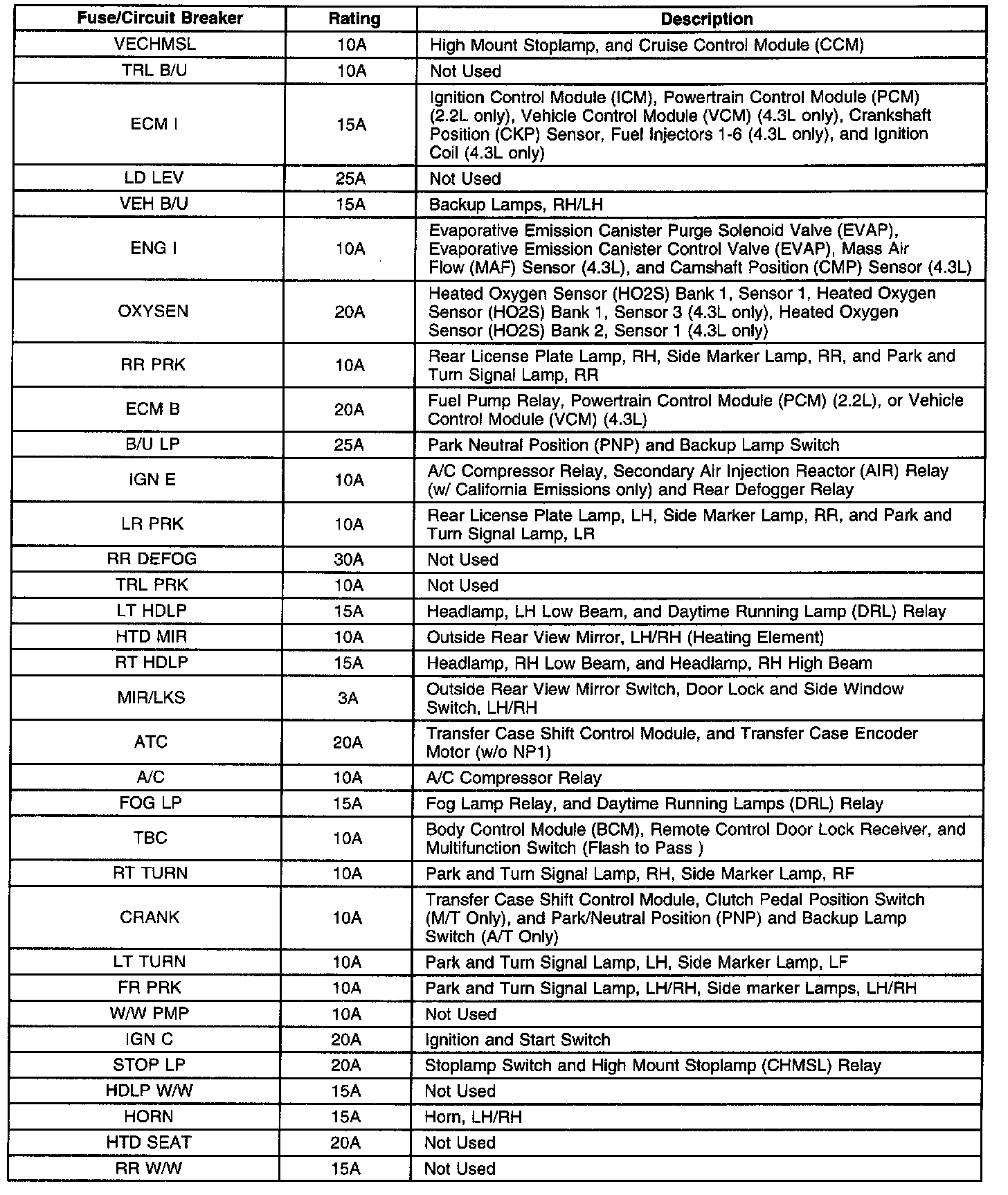

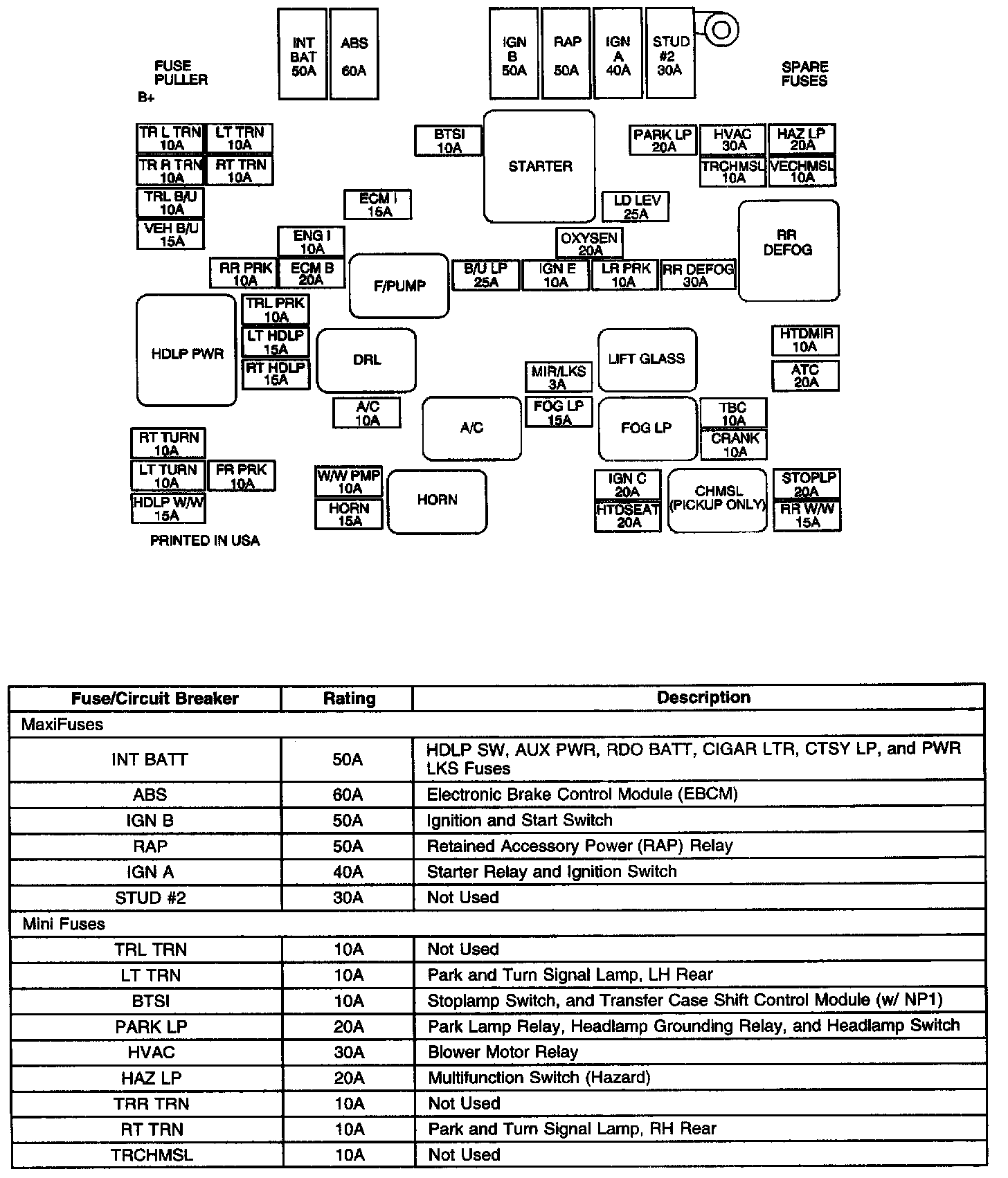

Underhood Fuse Block Details: Uplevel Pickup (Part 1 Of 3):
Underhood Fuse Block Details: Uplevel Pickup (Part 2 Of 3):
Underhood Fuse Block Details: Uplevel Pickup (Part 3 Of 3):
