Chevy Truck
>>
2000
>>
S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
With Automatic Transmission
With Automatic Transmission

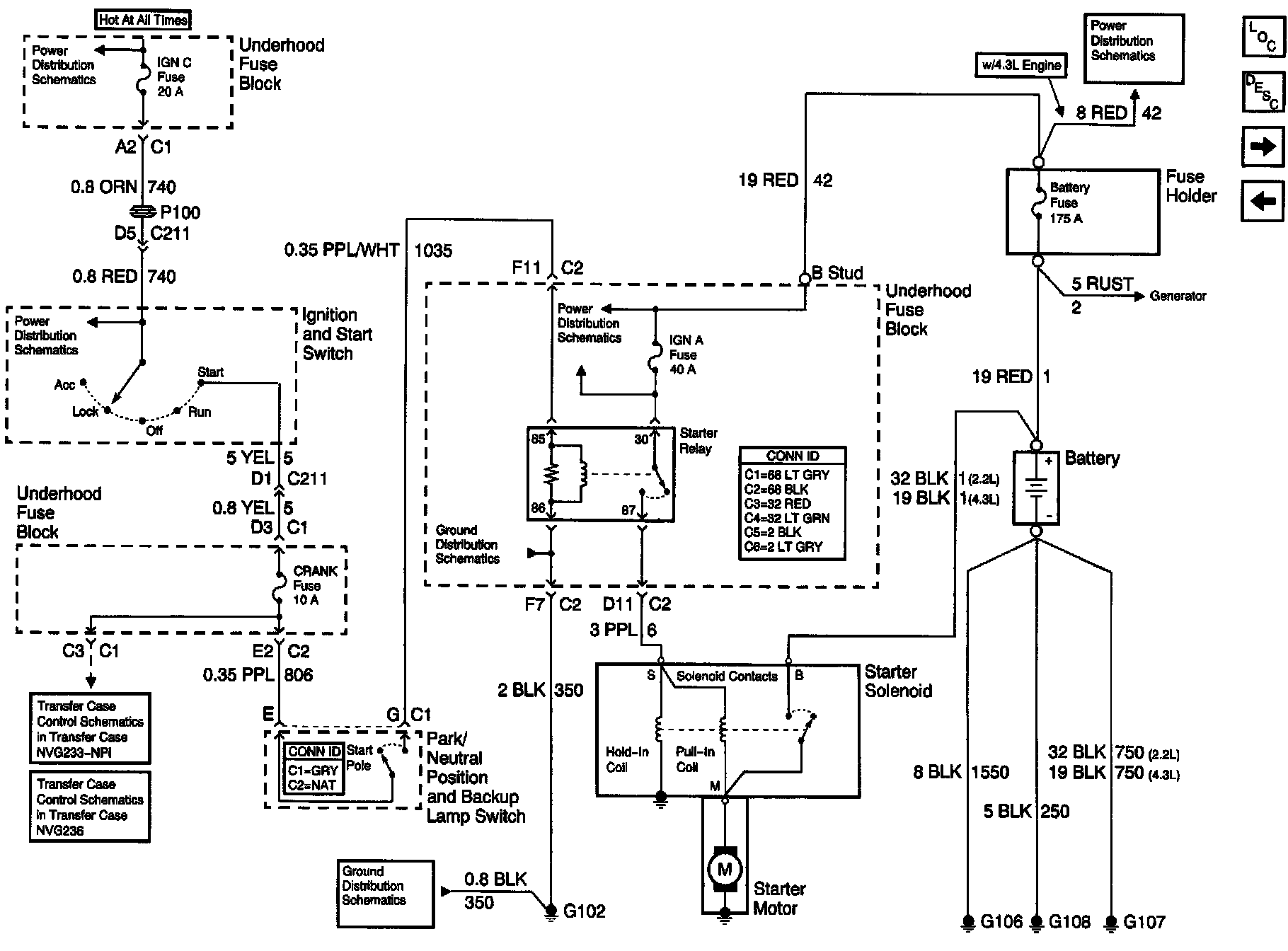

Starting And Charging Schematics: Automatic Transmission Starting:
