Component Locations

SECONDARY AIR INJECTION REACTOR (AIR) PUMP

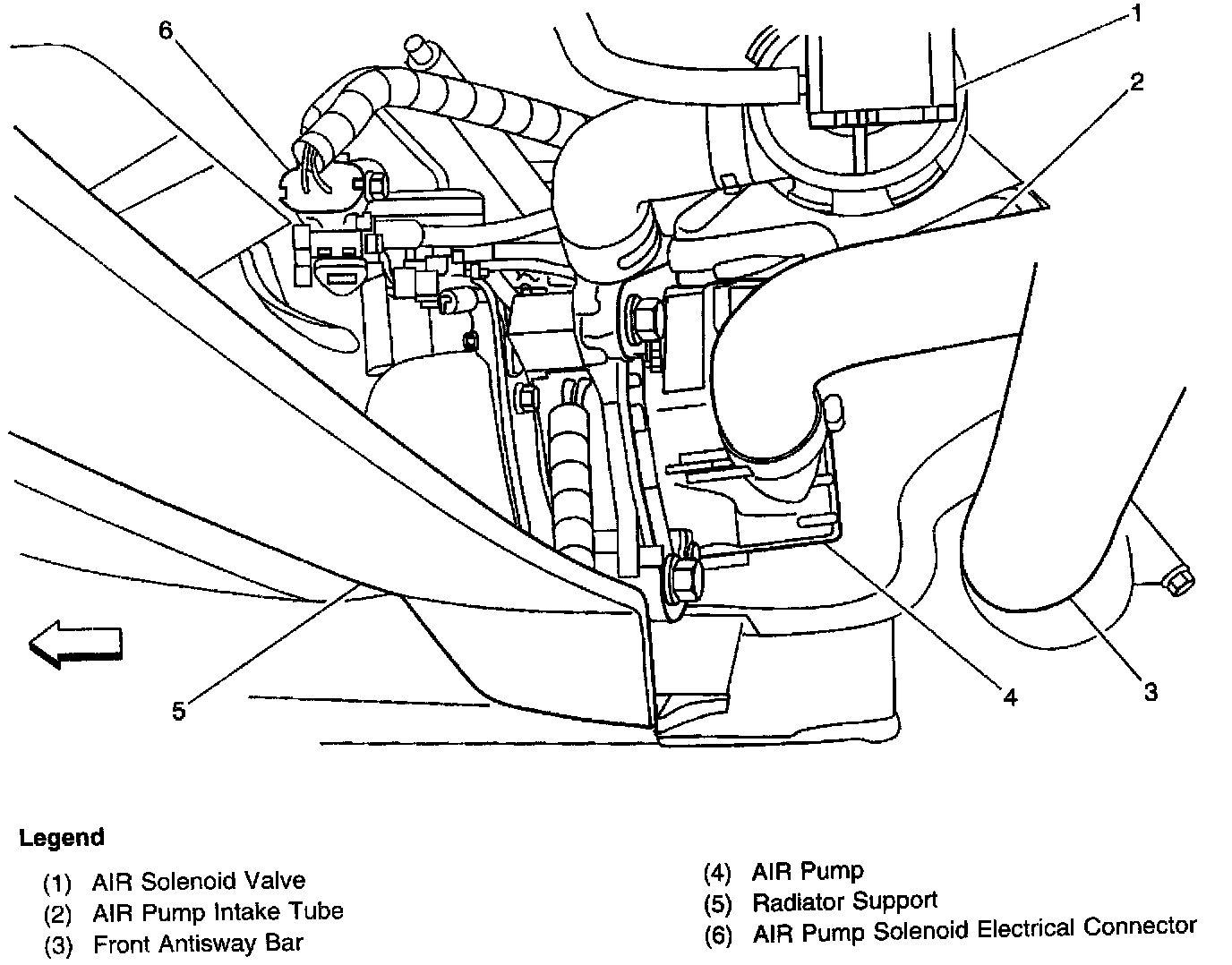

Locations View:






The Secondary Air Injection Reactor (Air) Pump is located in the lower RF engine compartment area.
