Chevy Truck
>>
2000
>>
S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Diagrams
>>
Heating, Ventilation and Air Conditioning
Heating, Ventilation and Air Conditioning

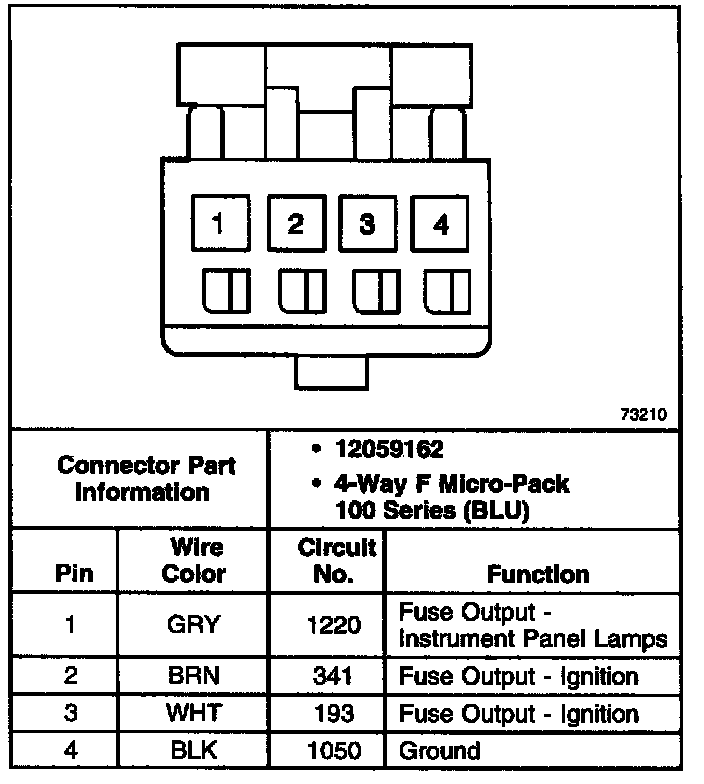

Heater And A/C Controller Connector C5 (w/Manual A/C):
