Clutch Rotor and/or Bearing Install (V7)

TOOLS REQUIRED
^ J 6083 Snap Ring Pliers
^ J 33023-A Puller Pilot
^ J 41552 Pulley Puller
^ J 29886 Driver Handle
^ J 33017 Pulley and Bearing Assembly Installer
^ J 8433-1 Puller Bar
^ J 9398-A Bearing Remover
^ J 34992 Holding Fixture

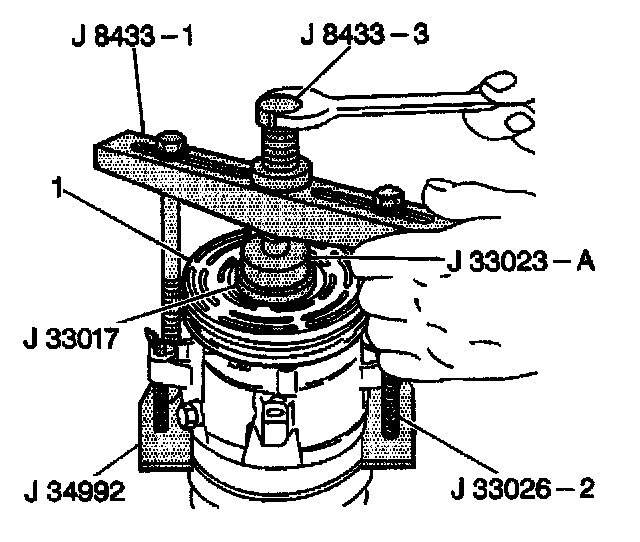

1. With the compressor mounted on the J 34992, position the pulley rotor (1) and the bearing assembly on the front head.
2. Position the J 33017 and the J 33023-A directly over the inner race of the bearing.
3. Position the J 8433-1 on the J 33023-A.
4. Assemble the 2 through bolts and the washers through the puller bar slots.
5. Thread the through bolts into the J 34992.
Ensure that the thread of the through bolts engage the full thickness of the J 34992.
6. Tighten the center screw in the J 8433-1 in order to force the pulley rotor and bearing assembly onto the compressor front head.
If the J 33017 slips off direct in-line contact with the inner race of the bearing, perform the following steps:
6.1. Loosen the J 8433-3
6.2. Realign the installer and the pilot in order to ensure that the J 33017 properly clears the front head.

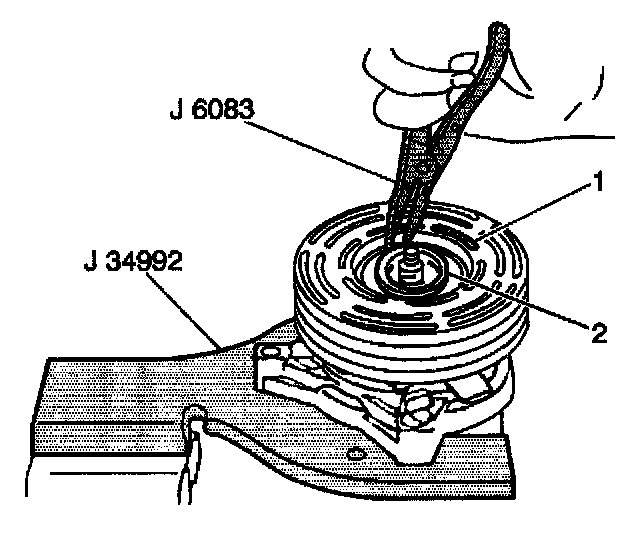

7. Use the snap ring pliers in order to install the following components:
8. The pulley rotor (1)
9. The retaining ring (2)
10. Install the clutch plate and hub assembly.
11. Install the compressor to the vehicle.
