Chevy Truck
>>
2000
>>
S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
System Diagram
>>

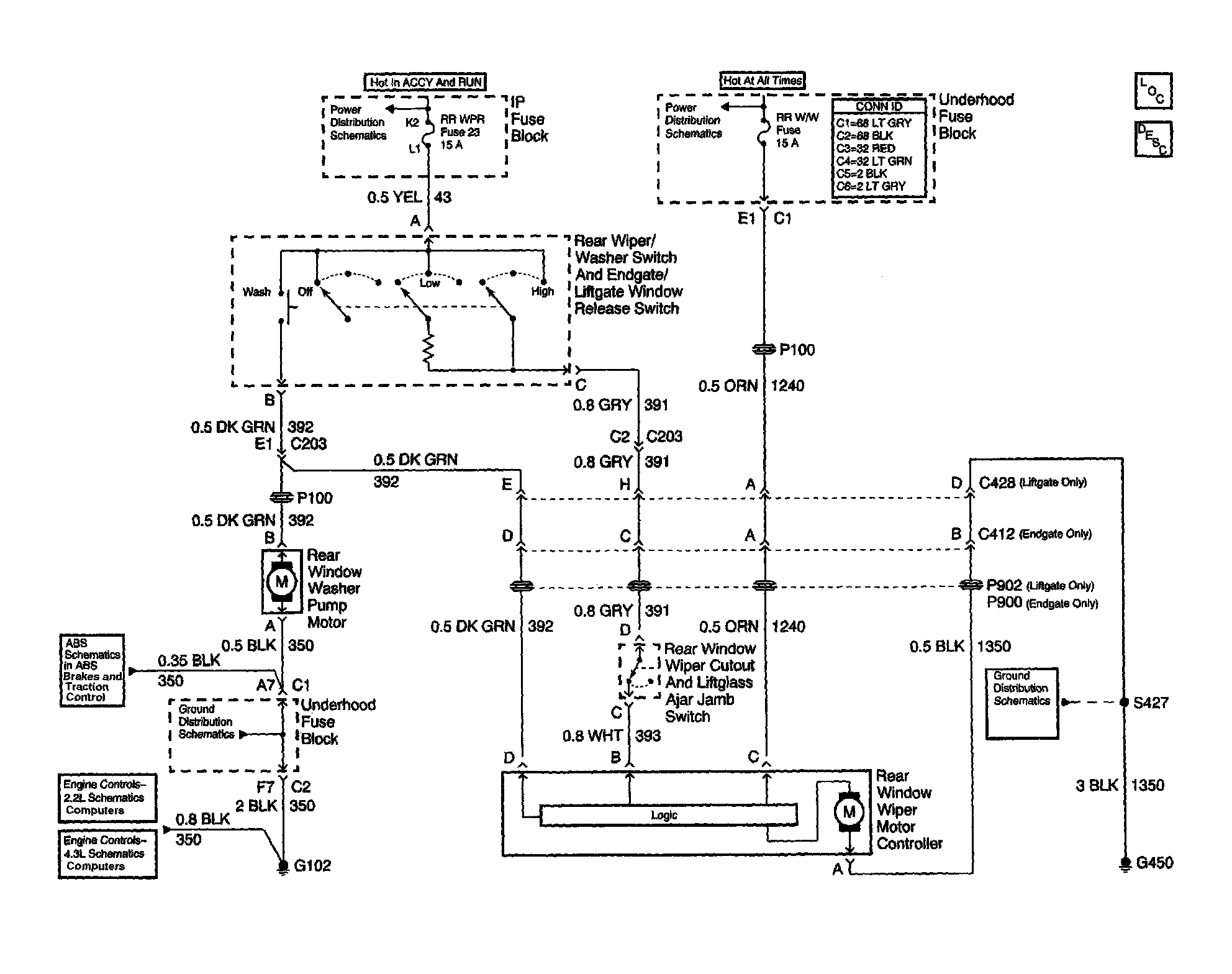

Wiper/Washer System (Rear) Schematics
Wiper/Washer System (Rear) Schematics
Wiper/Washer System (Rear) Schematics:
