Suspension Control ( Automatic - Electronic )
>>

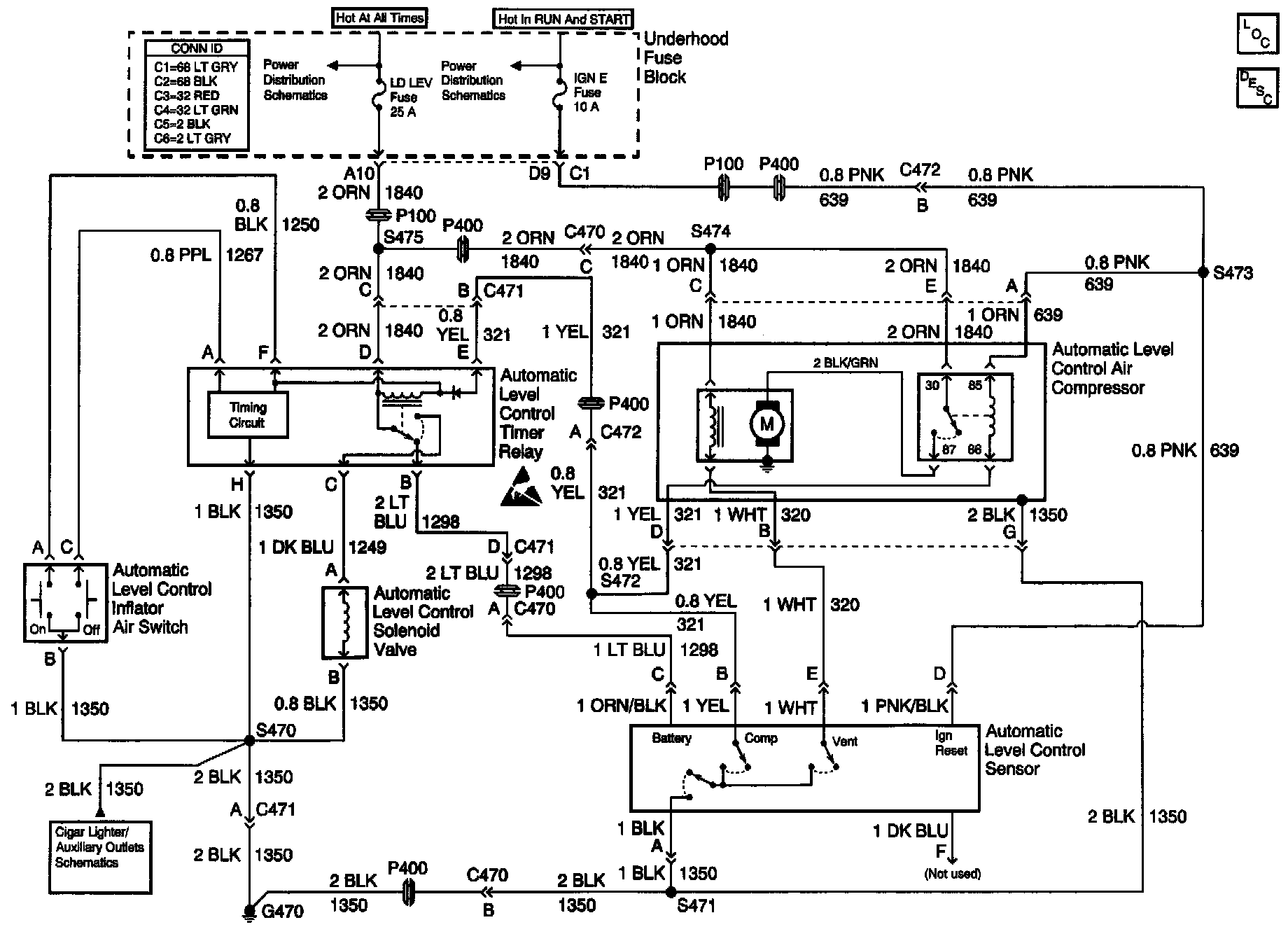

Automatic Level Control Suspension Schematics
Automatic Level Control Suspension Schematics
Automatic Level Control Suspension Schematics:
