S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
System Diagram
>>
Power Seats Schematics
>>
8-Way LH Power Seat
8-Way LH Power Seat

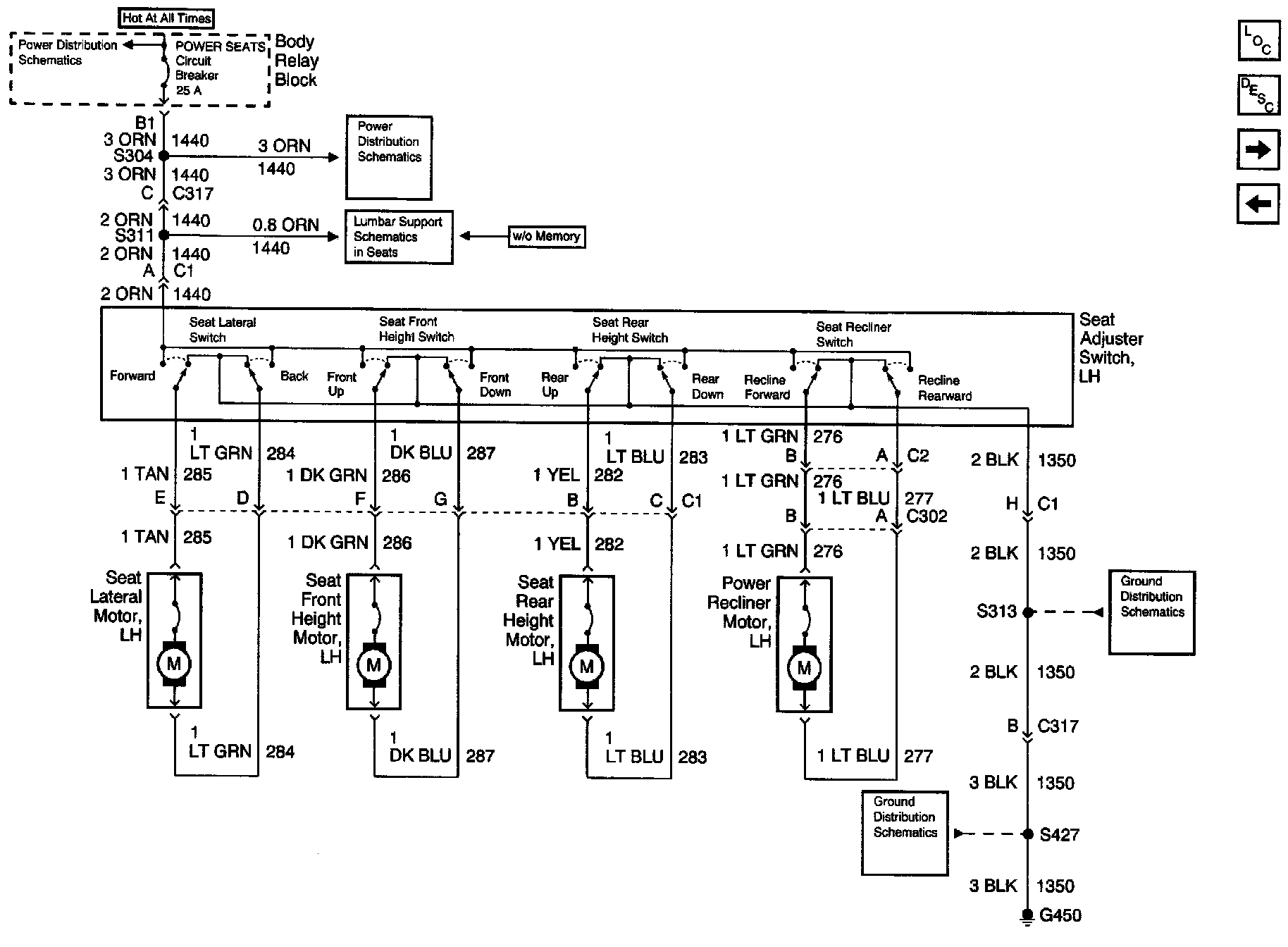

Power Seats Schematics: 8-Way LH Power Seat:
