Chevy Truck
>>
2000
>>
S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
System Diagram
>>
Lumbar Support Schematics
>>
Lumbar Without Memory Seats
Lumbar Without Memory Seats

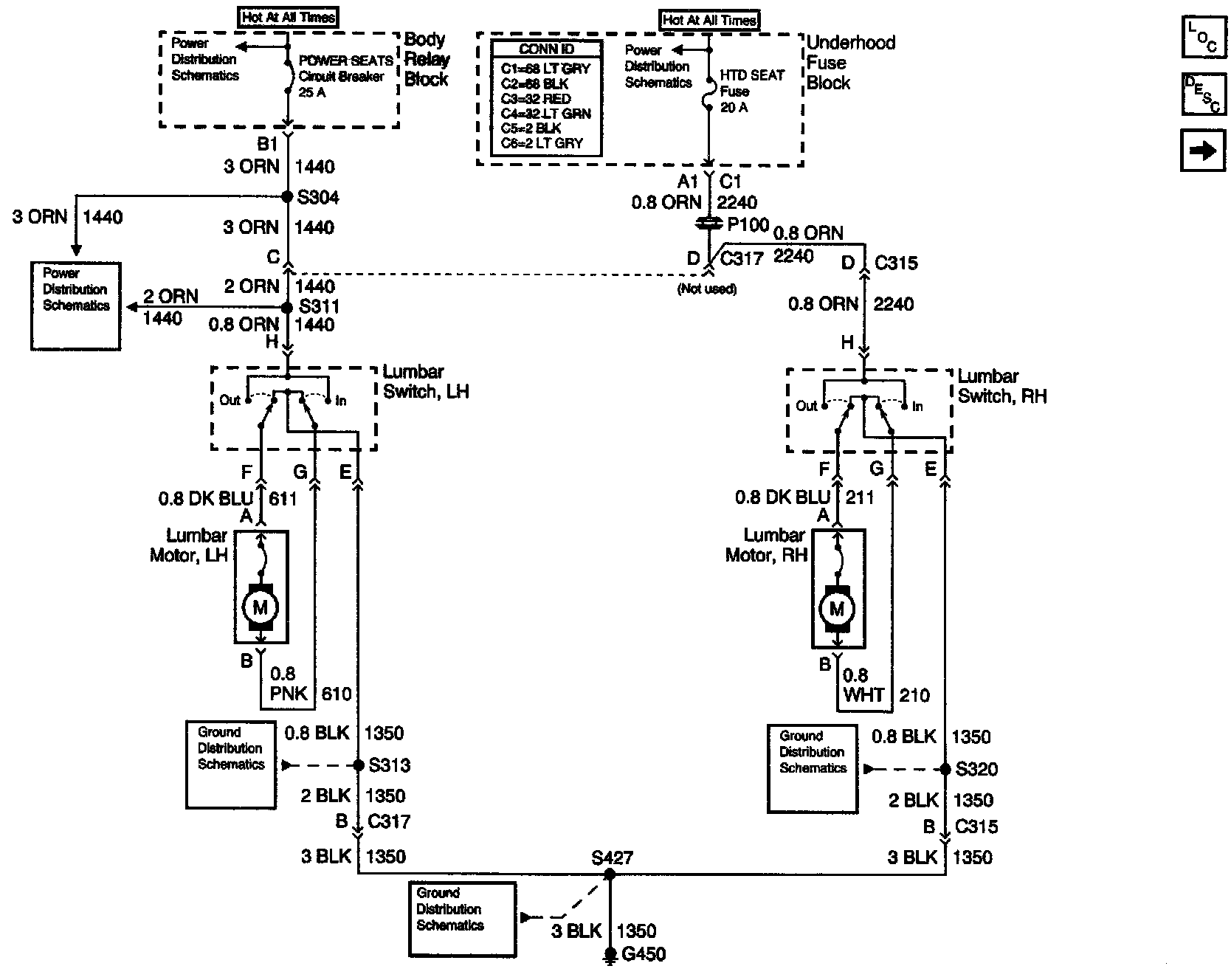

Lumbar Support Schematics: Lumbar Without Memory Seats:
