BCM Inputs and Outputs
BCM Inputs and Outputs

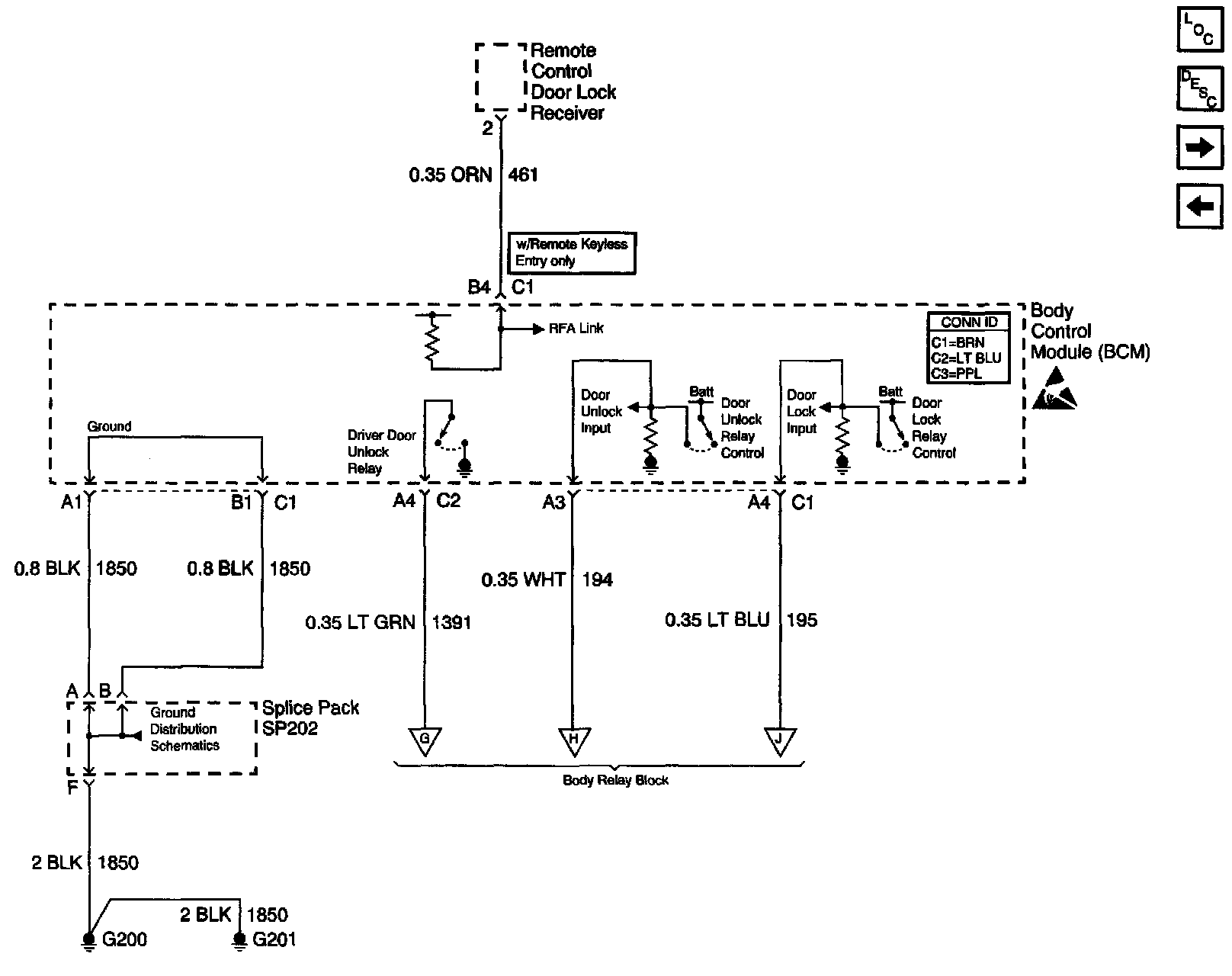

Door Lock/Indicator Schematics: BCM Inputs And Outputs:
