Home
>>
Chevy Truck
>>
2000
>>
S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Warning Indicator
>>
310 Series
310 Series

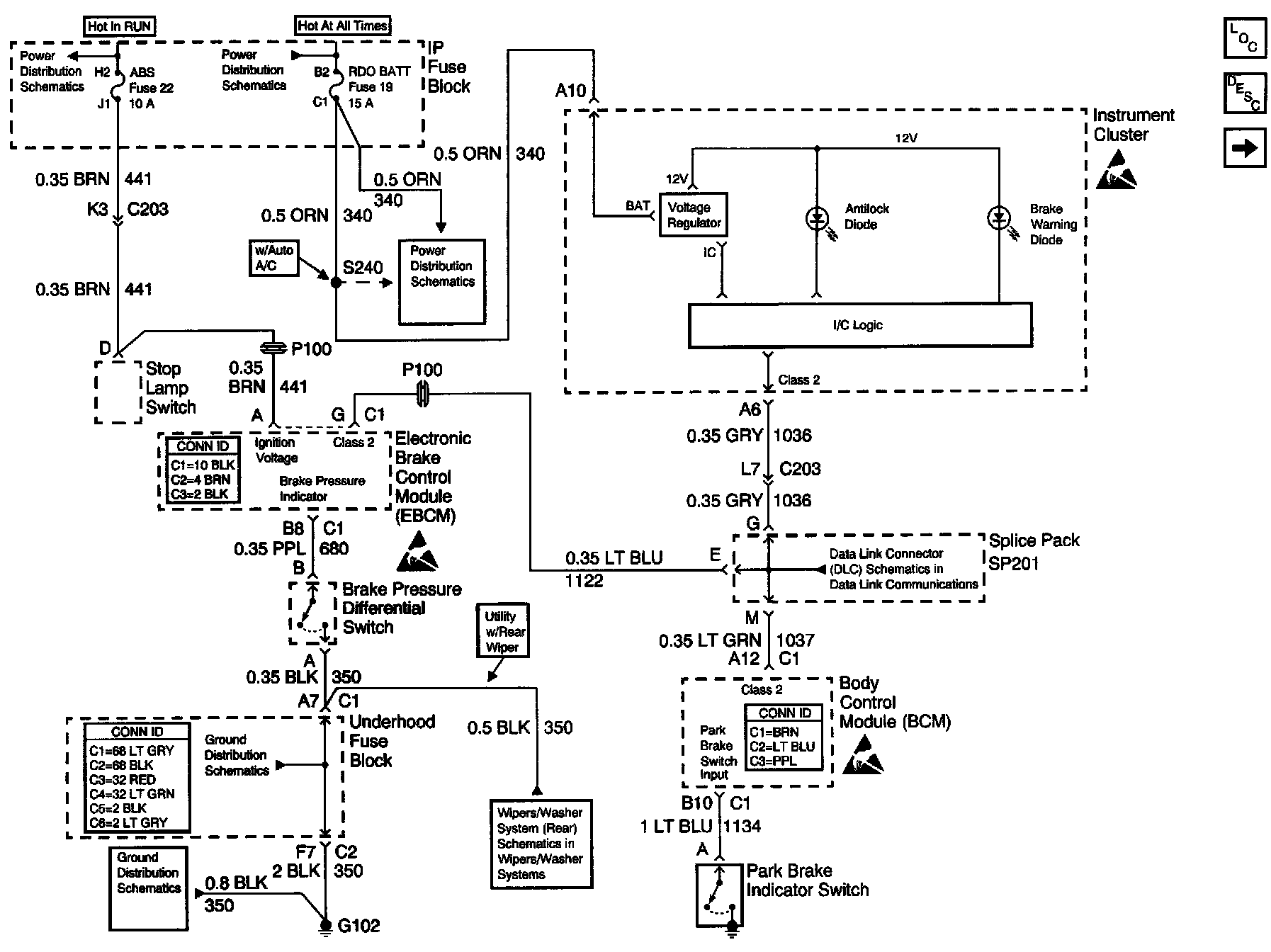

Brake Warning System Schematics: 310 Series:
