Antitheft and Alarm Systems
>>
Door Handle Switch Inputs
Door Handle Switch Inputs

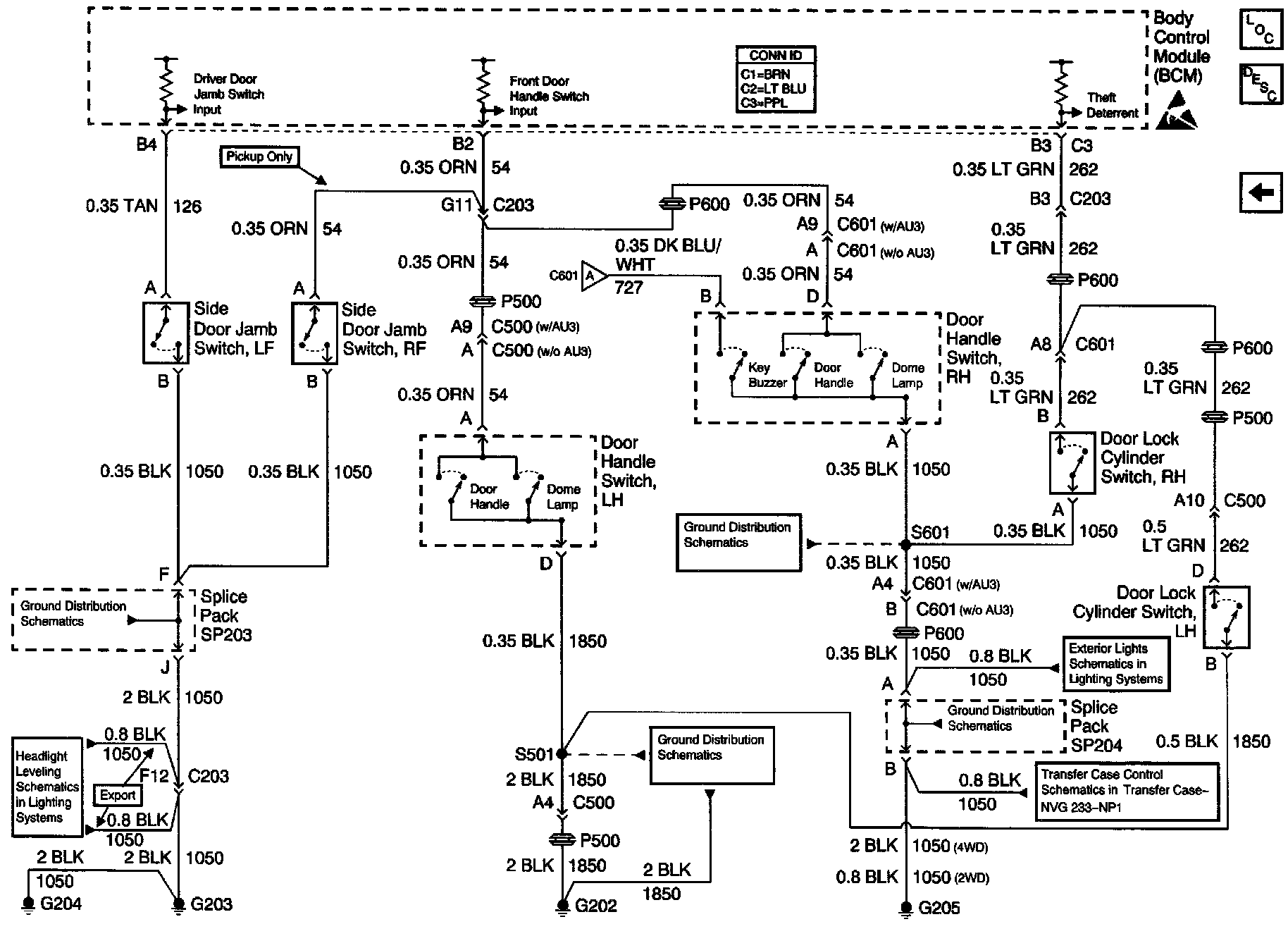

Theft Deterrent System Schematics: Door Handle Switch Inputs:
