Chevy Truck
>>
2000
>>
S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turn Signal Lamp
>>
Tail Signal Lamp, RR Connector (Export Only)
Tail Signal Lamp, RR Connector (Export Only)

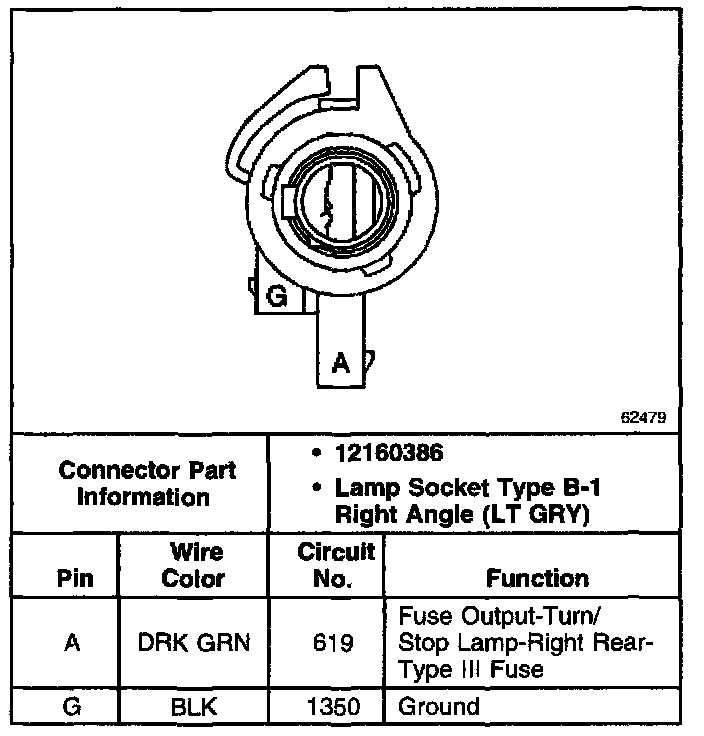

Tail Signal Lamp, RR Connector (Export Only):
