Seat Lateral Transducer Connector
Seat Lateral Transducer Connector

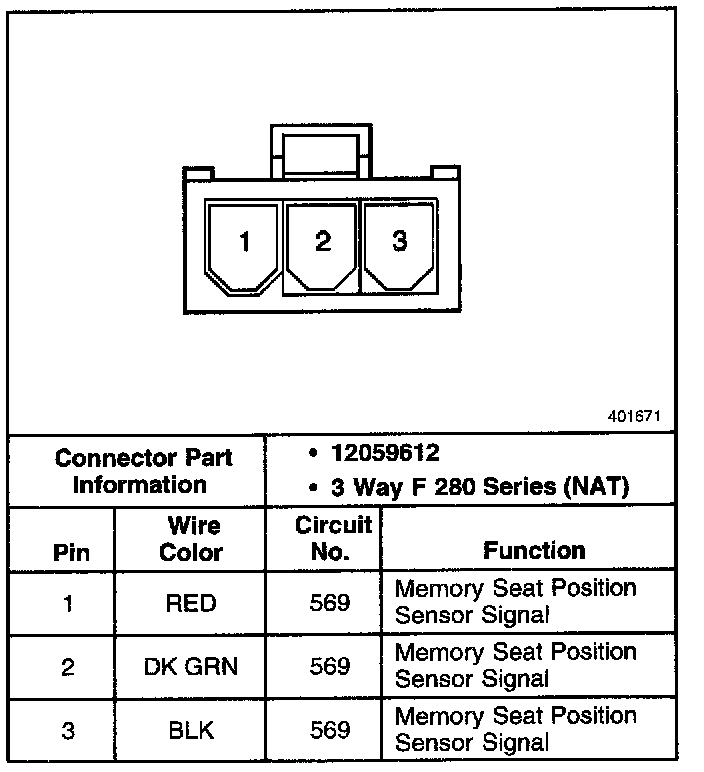

Seat Lateral Transducer Connector:
