System Diagram
>>
Seat Adjuster Switch,RH (6-Way)
Seat Adjuster Switch,RH (6-Way)

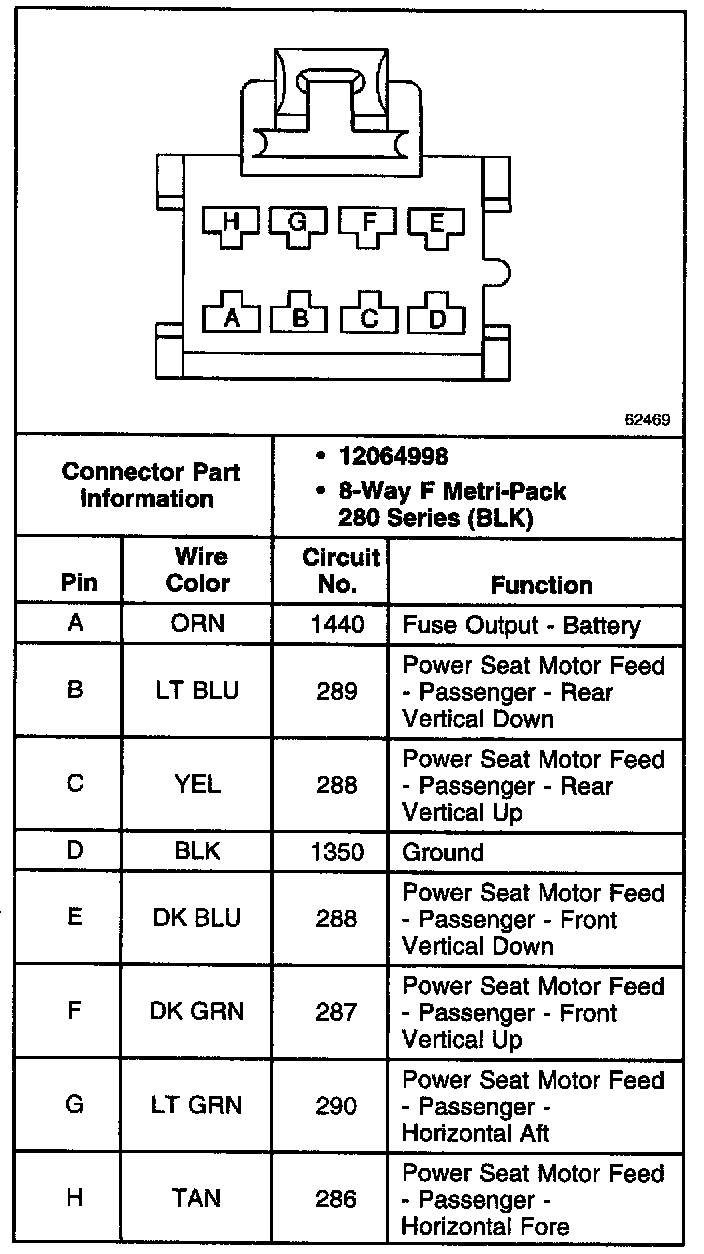

Seat Adjuster Switch,RH (6-Way):
