S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Auxiliary Power Outlet
>>
Accessories Power Receptacle - RH
Accessories Power Receptacle - RH

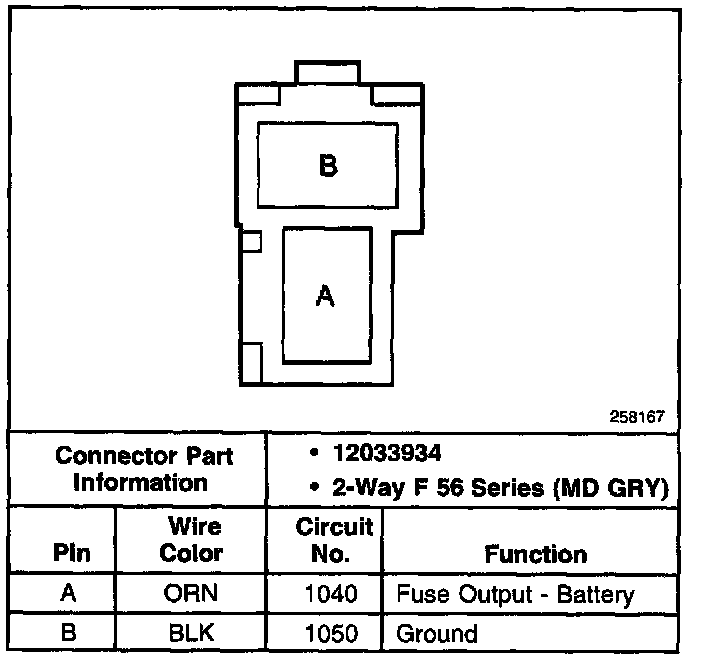

Accessories Power Receptacle, RH:
