Home
>>
Chevy Truck
>>
2000
>>
S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
>>
System Diagram
>>

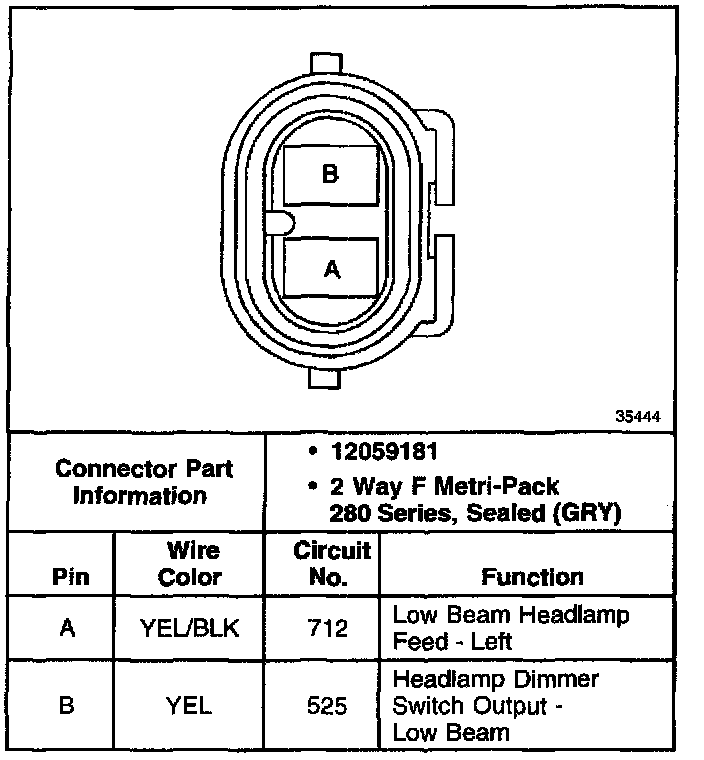

Headlamp, LH Low Beam Connector
Headlamp, LH Low Beam Connector
Headlamp, LH Low Beam Connector:
