Chevy Truck
>>
2000
>>
S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Switch
>>
Side Door Jamb Switch, RF
Side Door Jamb Switch, RF

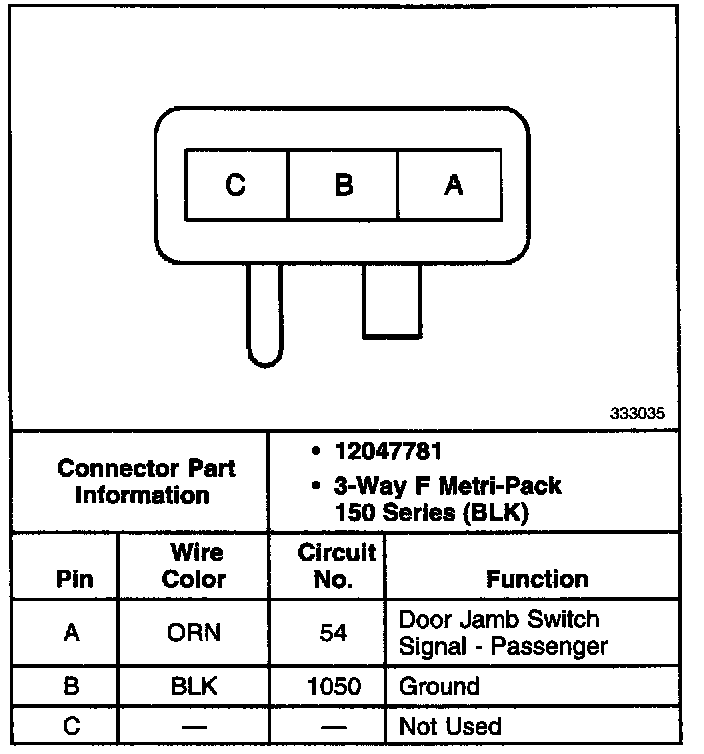

Side Door Jamb Switch, RF (Pickup):
