Home
>>
Chevy Truck
>>
2000
>>
S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Switch
>>
Door Jamb Switch, LH/RH
Door Jamb Switch, LH/RH

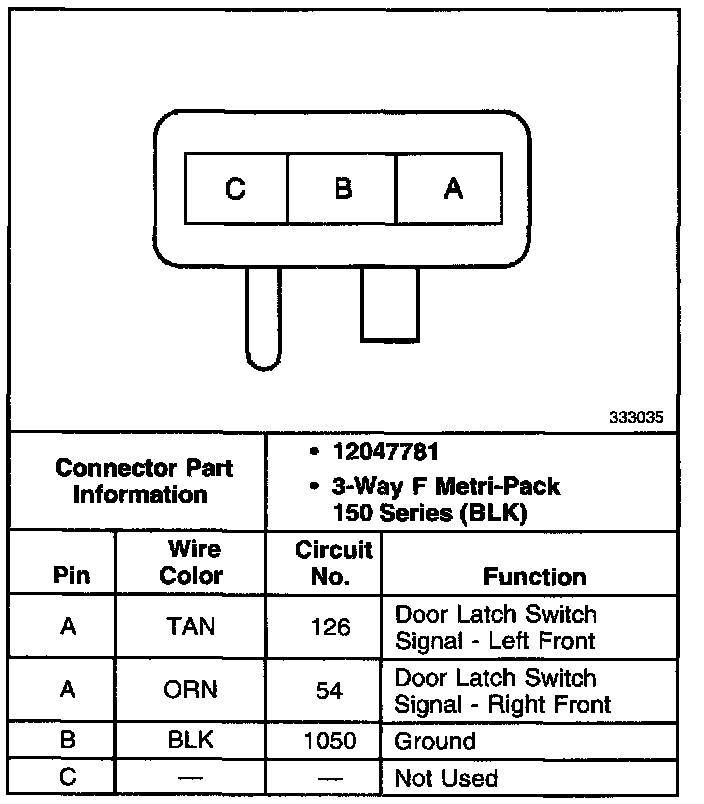

Door Jamb Switch, LH/RH:
