Lower Control Arm Bushings Replacement (4WD)

- Tools Required
- J 21474-01 Control Arm Bushing Service Set

Removal Procedure





1. Remove the lower control arm. Refer to Lower Control Arm Replacement (RWD) or Lower Control Ann Replacement (4WD).

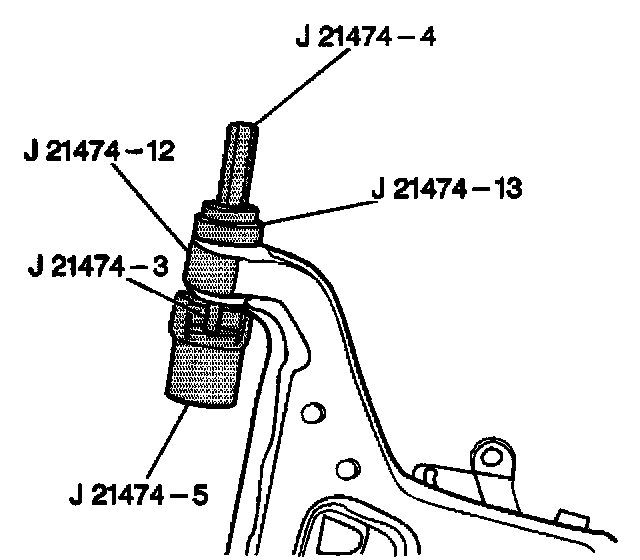

2. Remove the front bushing. Use the J 21474-01 Control Arm Bushing Service Set.

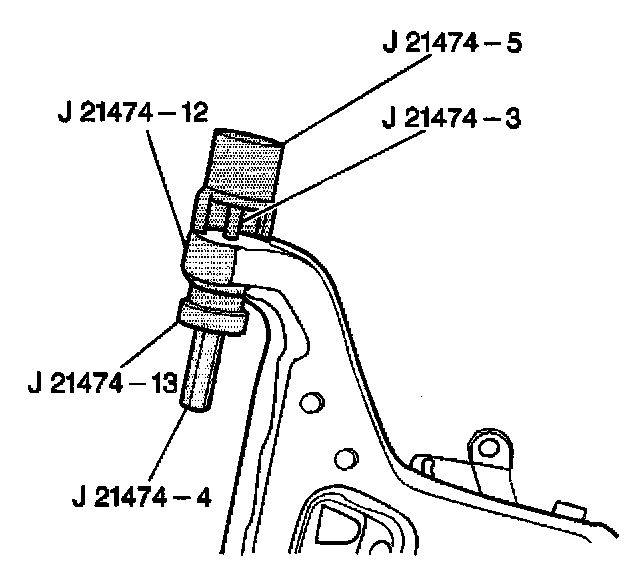

3. Remove the rear bushing. Use the J 21474-01 Control Arm Bushing Service Set.

Installation Procedure

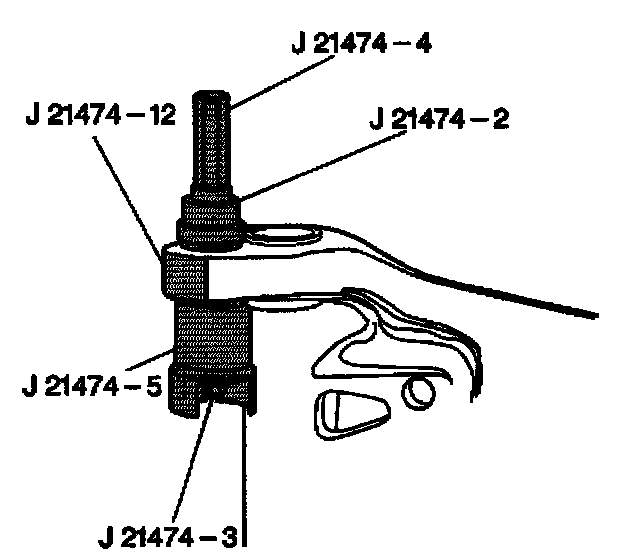

1. Install the front bushing. Use the J 21474-01 Control Arm Bushing Service Set.





2. Install the rear bushing. Use the J 21474-01 Control Arm Bushing Service Set.
3. Install the lower control arm. Refer to Lower Control Arm Replacement (RWD) or Lower Control Arm Replacement (4WD).
