Chevy Truck
>>
2000
>>
S10/T10 Blazer 4WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper and Washer Systems
>>
Wiper Motor
>>
Rear Window Wiper Motor Controller
Rear Window Wiper Motor Controller

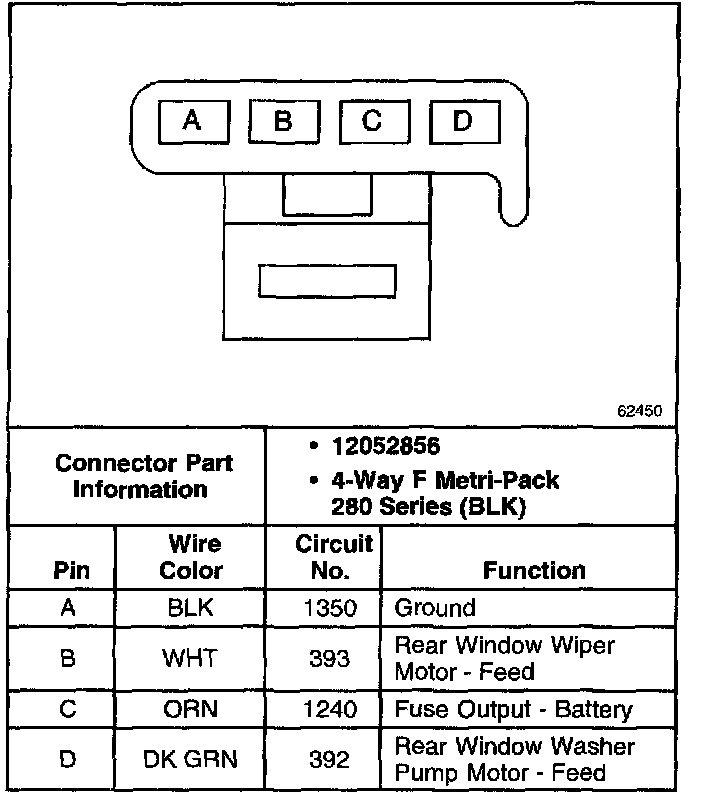

Rear Window Wiper Motor Controller (Utility):
