Chevy Truck
>>
2000
>>
S10/T10 Blazer 4WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Injector
Fuel Injector

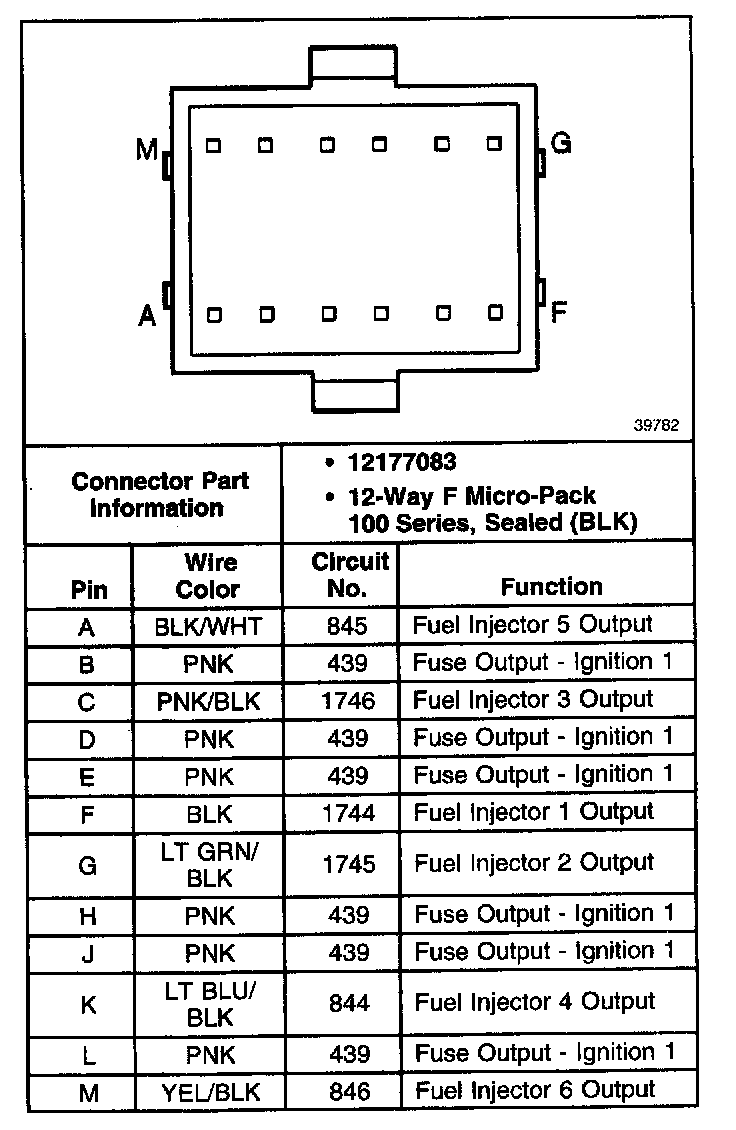

Central Sequential Fuel Injector (CSFI) Connector:
