Rear Window Washer Pump Motor
Rear Window Washer Pump Motor

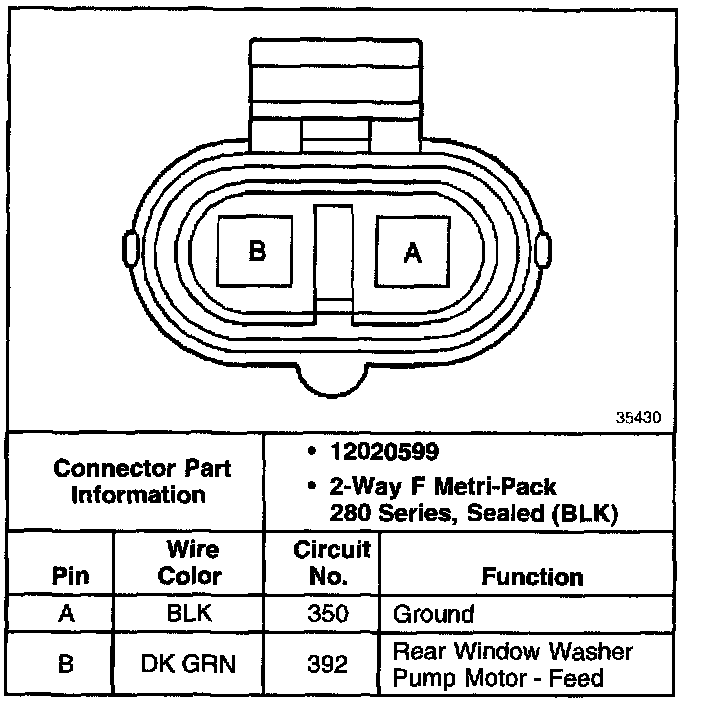

Rear Window Washer Pump Motor (Utility):
