Utility

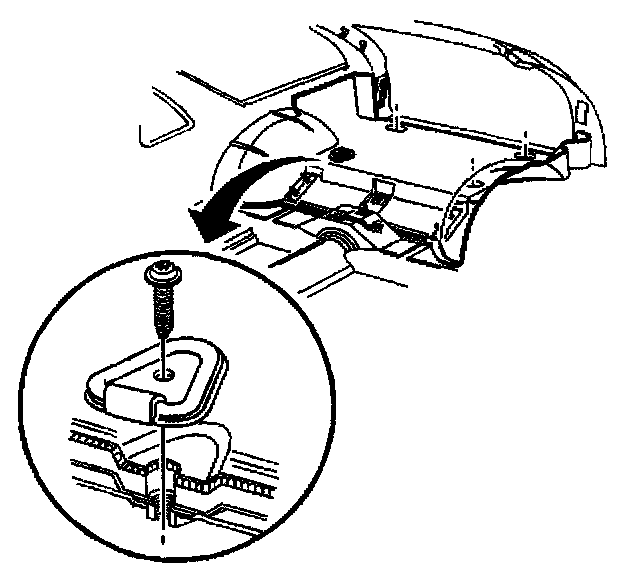

REMOVAL PROCEDURE






1. Remove the cargo tie down mounting bolt.
2. Remove the cargo tie down loop.

INSTALLATION PROCEDURE
1. Position the cargo tie down loop on the floor.

NOTE: Refer to Fastener Notice in Service precautions.

2. Install the cargo tie down loop to the floor with the mounting bolt.

Tighten
Tighten the cargo tie down loop mounting bolt to 35 N.m (26 lb ft).
