4-Door

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the negative battery cable.
2. Relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure.
3. Raise the vehicle.

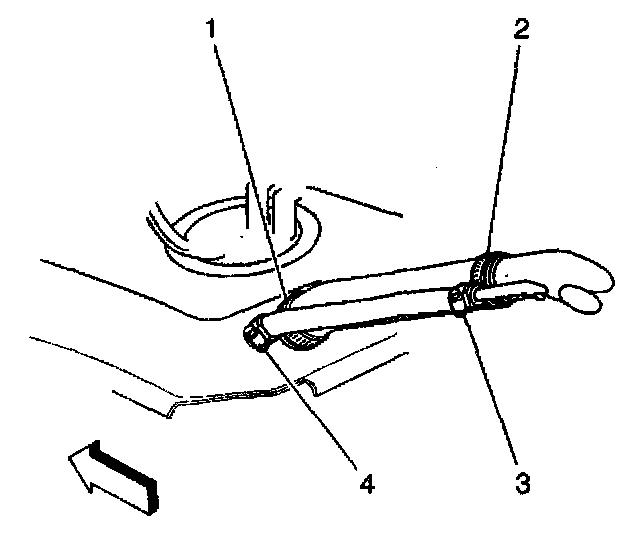

4. Wipe the vent hose connection at the fuel tank and then disconnect the vent hose and clamp (4).
5. Wipe the fuel filler hose connection at the fuel tank and then disconnect the fuel filler hose and clamp (1).




6. Disconnect the fill pipe ground strap (1).

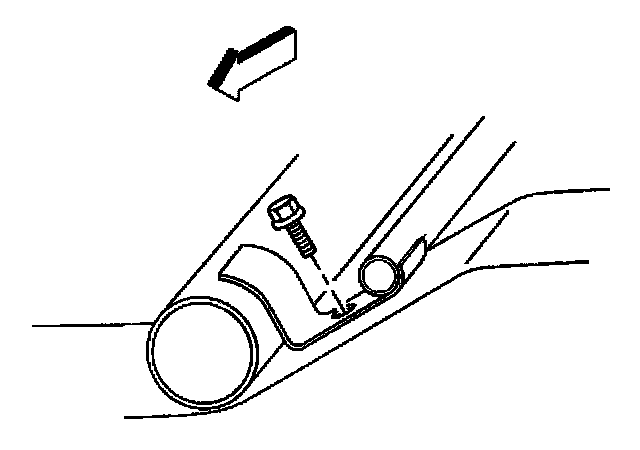

7. Remove the fill and vent pipe bracket to frame bolt.




8. Remove the fuel fill pipe to fill pipe housing attaching screws.
9. Remove the fuel fill and vent pipes and hoses.

INSTALLATION PROCEDURE




1. Install the fuel fill and vent pipes and hoses to the fuel tank (2) and the fill pipe housing.

Tighten
^ Tighten the vent hose clamp to 1.7 N.m (15 lb in).
^ Tighten the fuel fill hose clamp to 2.5 N.m (22 lb in).




2. Install the fill and vent pipe bracket to frame bolt.

Tighten
Tighten the pipe bracket bolt to 15 N.m (11 lb ft).




3. Connect the fill pipe ground strap (1) to the frame with the bolt and washer.

Tighten
Tighten the ground strap bolt to 15 N.m (11 lb ft).

4. Lower the vehicle.




5. Install the fuel fill pipe to fill pipe housing attaching screws.

Tighten
Tighten the fuel fill pipe to fill pipe housing screws to 1.9 N.m (17 lb in).

6. Install the fuel filler cap.
7. Connect the negative battery cable.
8. Inspect for leaks.
