Chevy Truck
>>
2000
>>
S10/T10 Blazer 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
>>

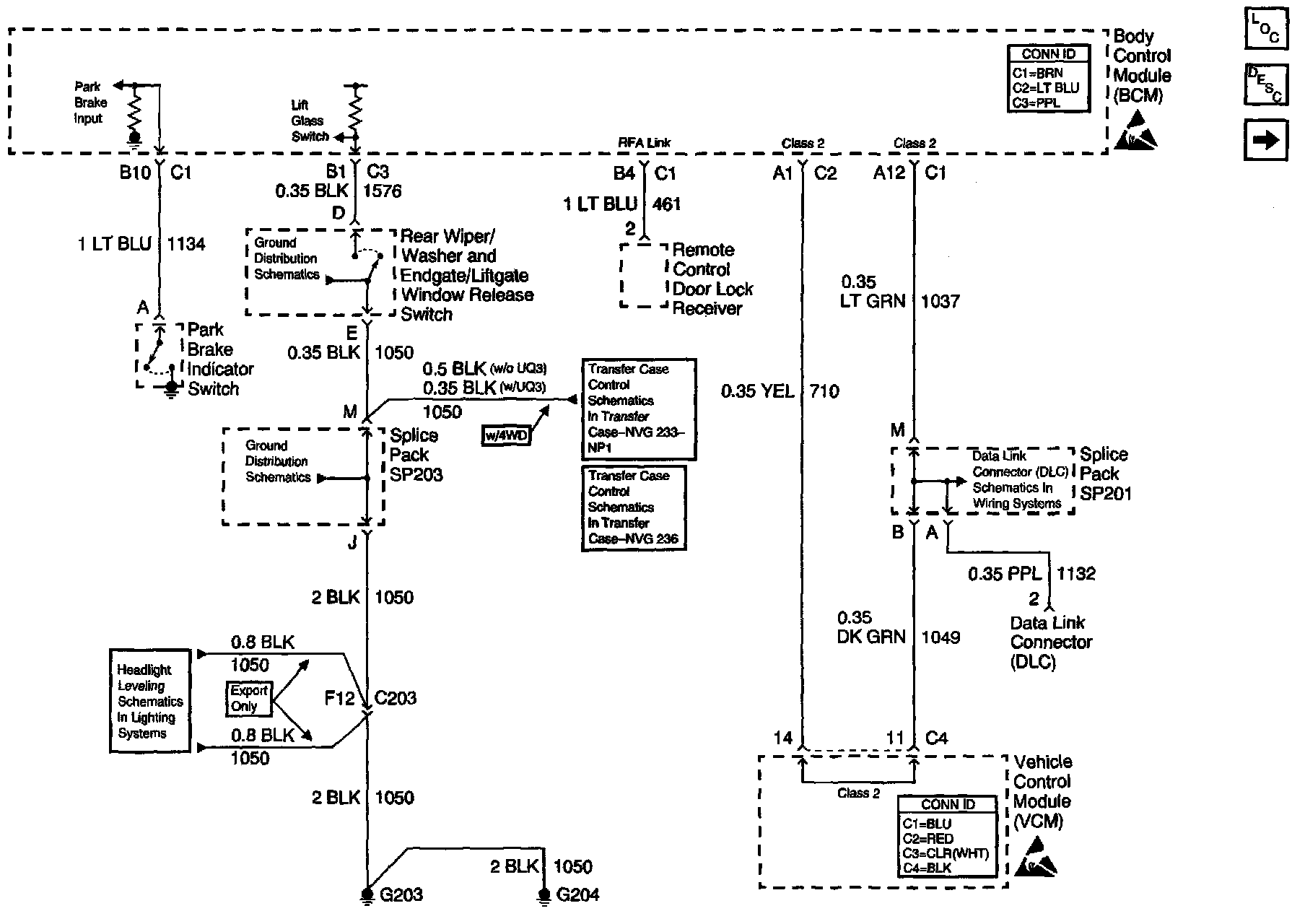

Release Systems Schematics
>>
Input
Input
Release Systems Schematics: Input:
