Power,Ground,Data Link Connector And Power Seat Adjuster Switch
Power,Ground,Data Link Connector And Power Seat Adjuster Switch

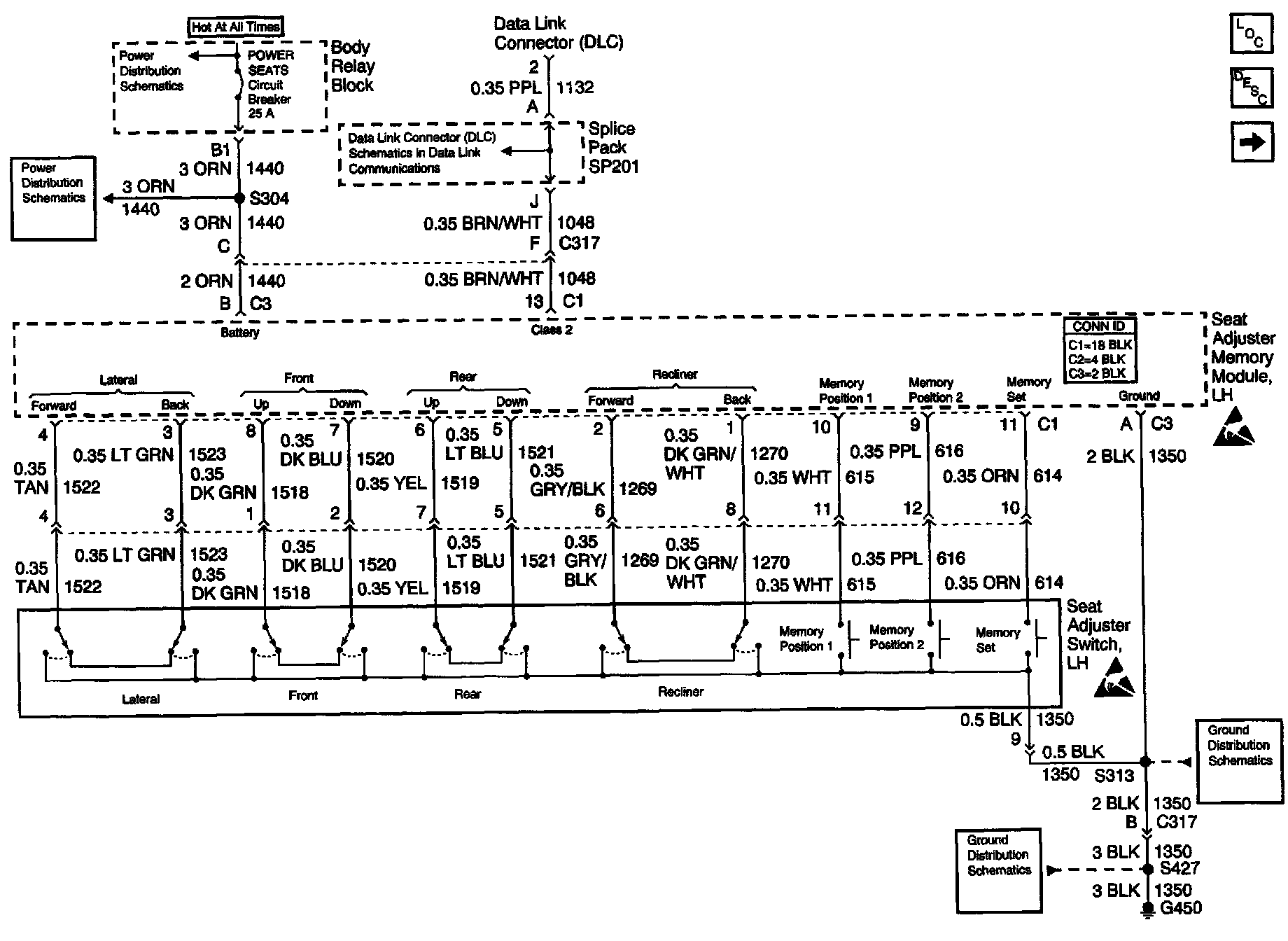

Memory Seats Schematics: Power,Ground,Data Link Connector (DLC) And Power Seat Adjuster Switch:
