Home
>>
Chevy Truck
>>
2000
>>
S10/T10 Blazer 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
System Diagram
>>

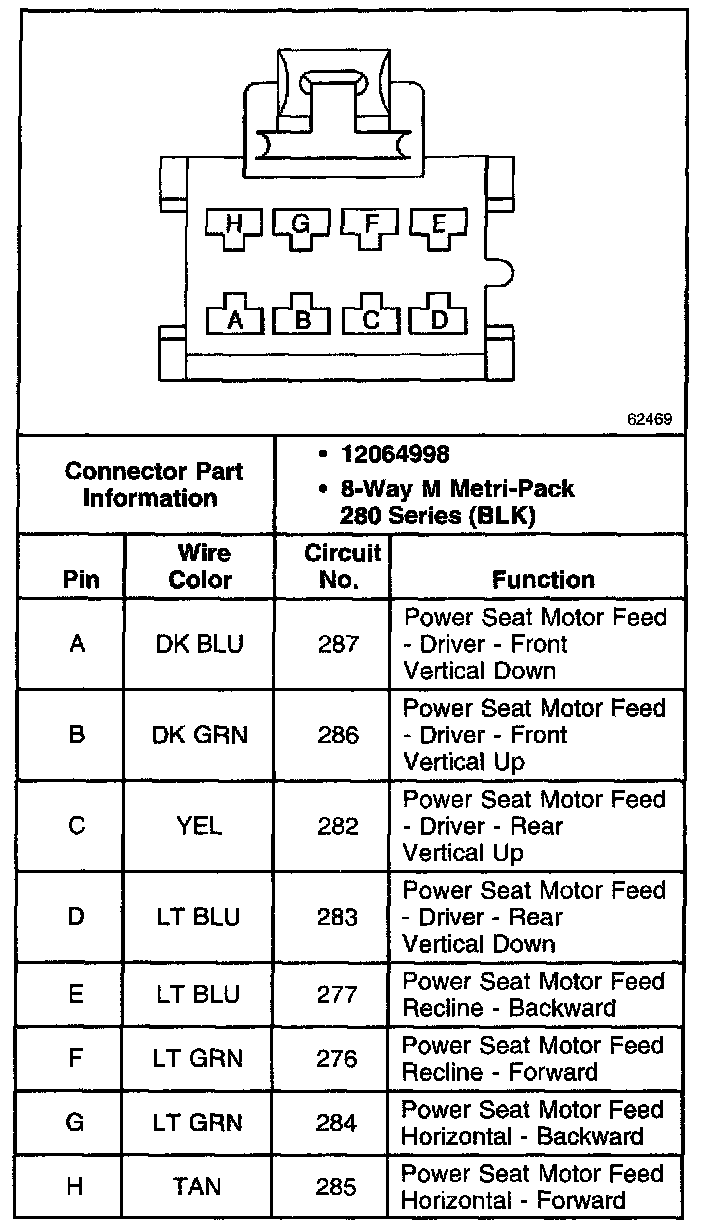

Seat Adjuster Memory Module,Connector C2
Seat Adjuster Memory Module,Connector C2
Seat Adjuster Memory Module,Connector C2:
