Chevy Truck
>>
2000
>>
S10/T10 Blazer 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Switch
>>
Side Door Jamb Switch, LR/RR
Side Door Jamb Switch, LR/RR

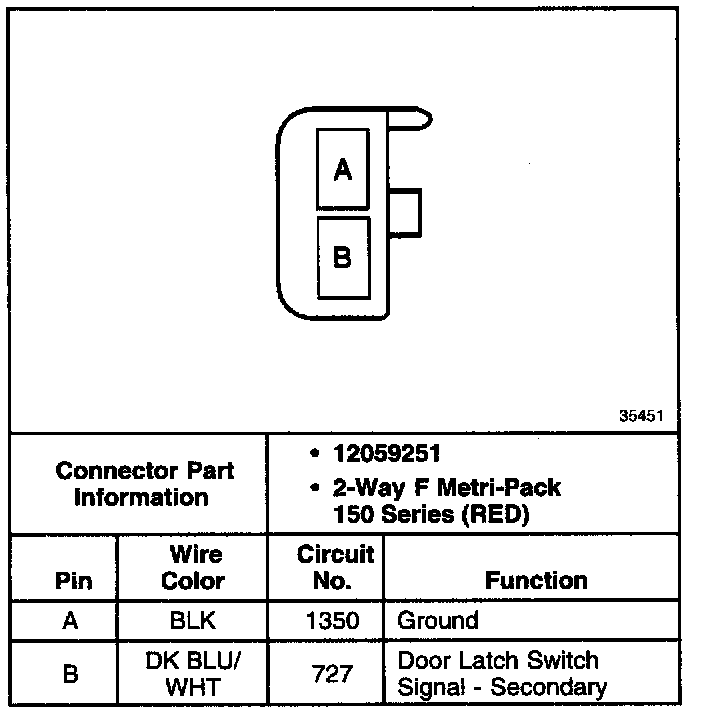

Side Door Jamb Switch, LR/RR (Utility):
