Fuel Injector Line
Fuel Injector Line

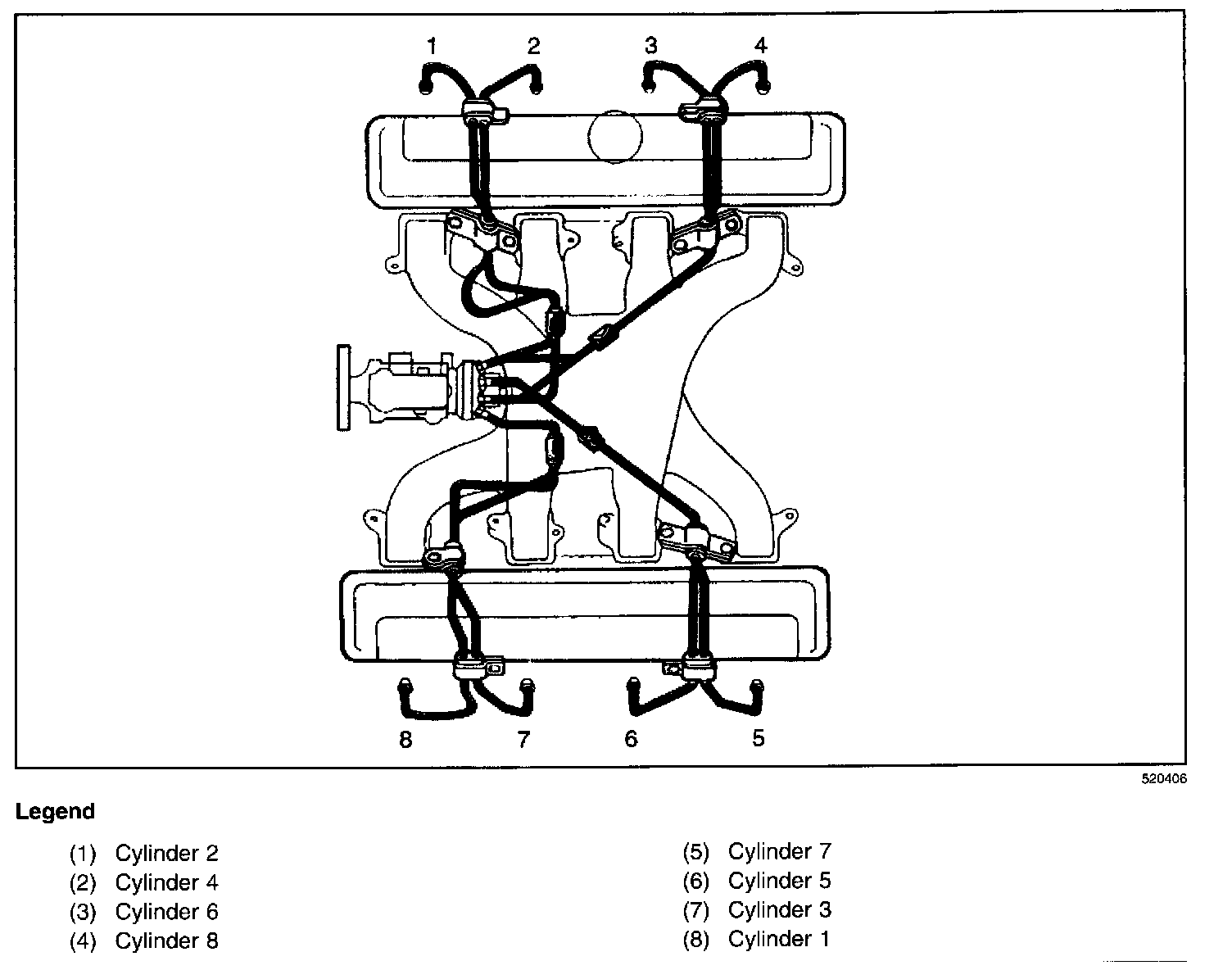

Fuel Injection Line Routing Diagram (Fuel Injection Line Routing Diagram):
