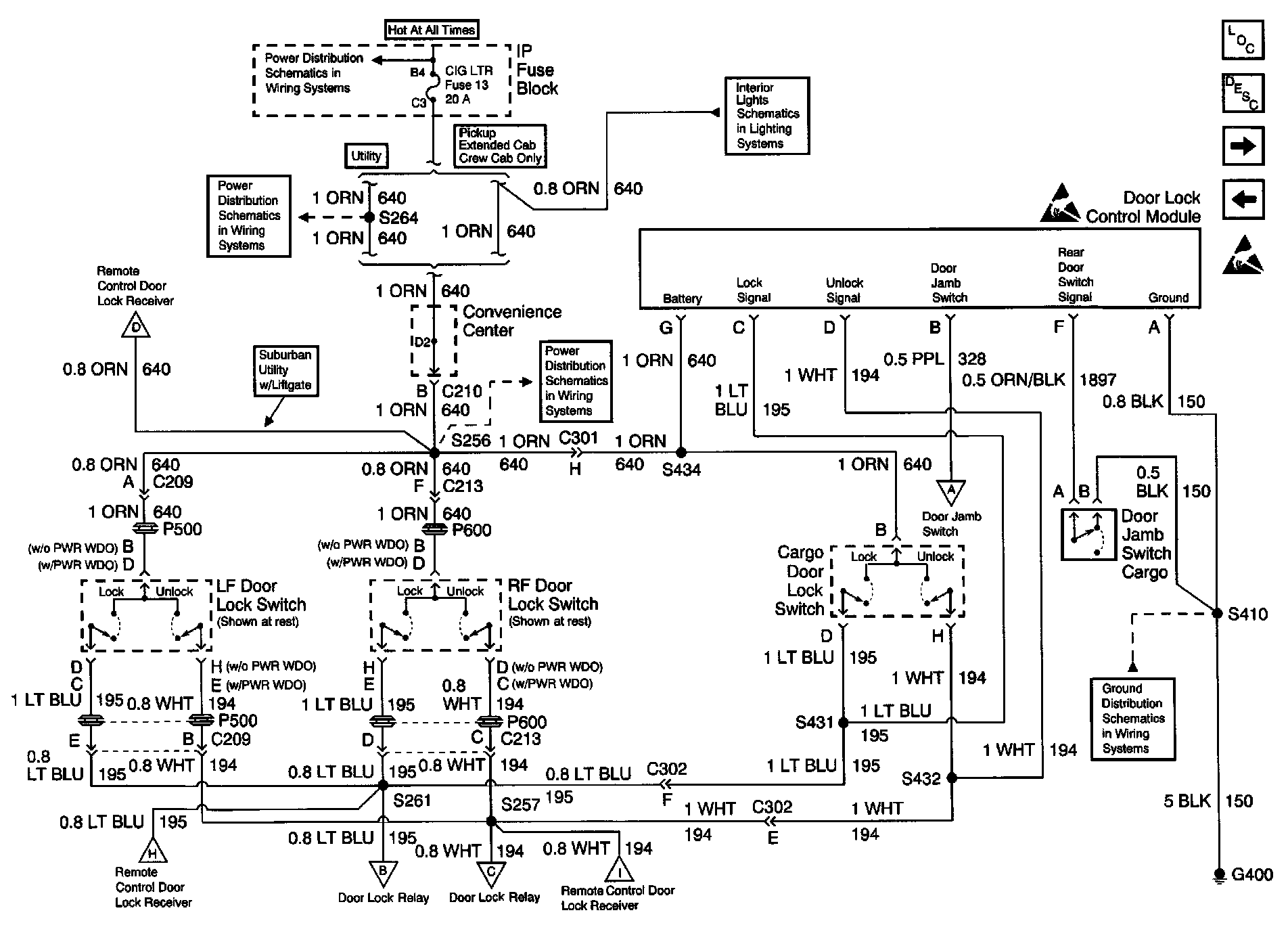

Door Lock Control Module and Door Lock Switches

Keyless Entry Schematics (Except Luxury): Door Lock Control Module and Door Lock Switches:
