K Tahoe 4WD V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pump
>>
Fuel Lift Pump Connector
Fuel Lift Pump Connector

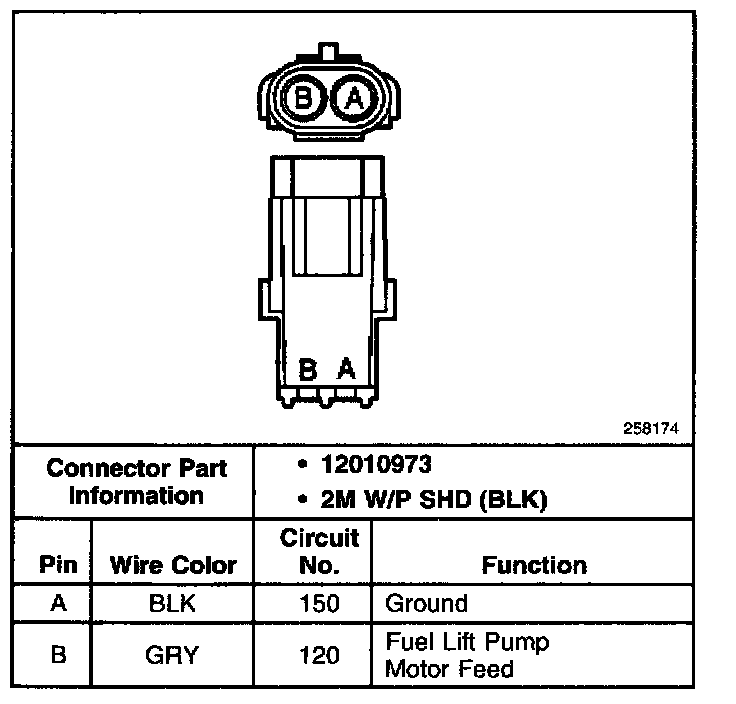

Fuel Lift Pump Connector:
