Fuel Pump
>>
Engine Oil Pressure Sender/Fuel Pump Switch
Engine Oil Pressure Sender/Fuel Pump Switch

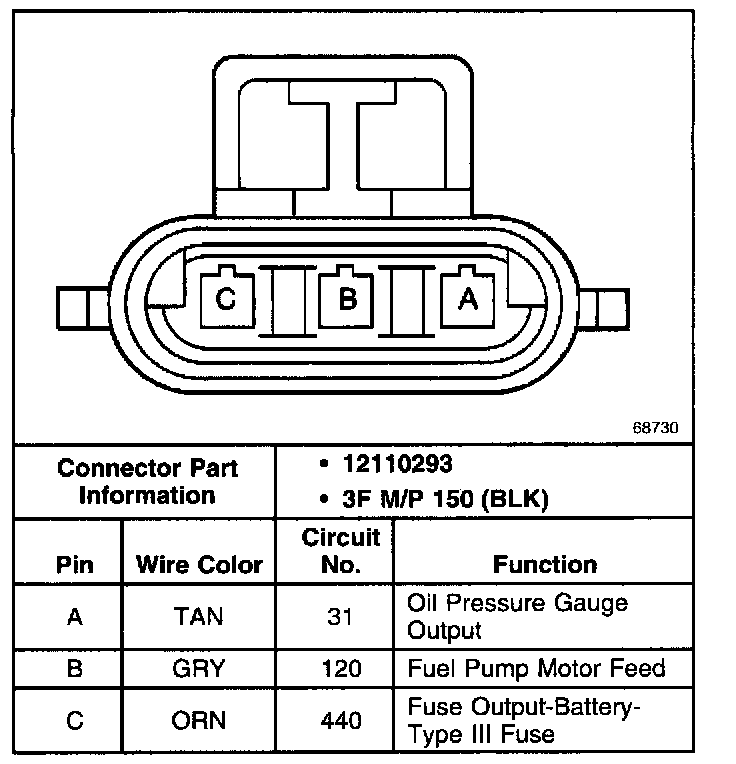

Engine Oil Pressure Sender/Fuel Pump Switch:
