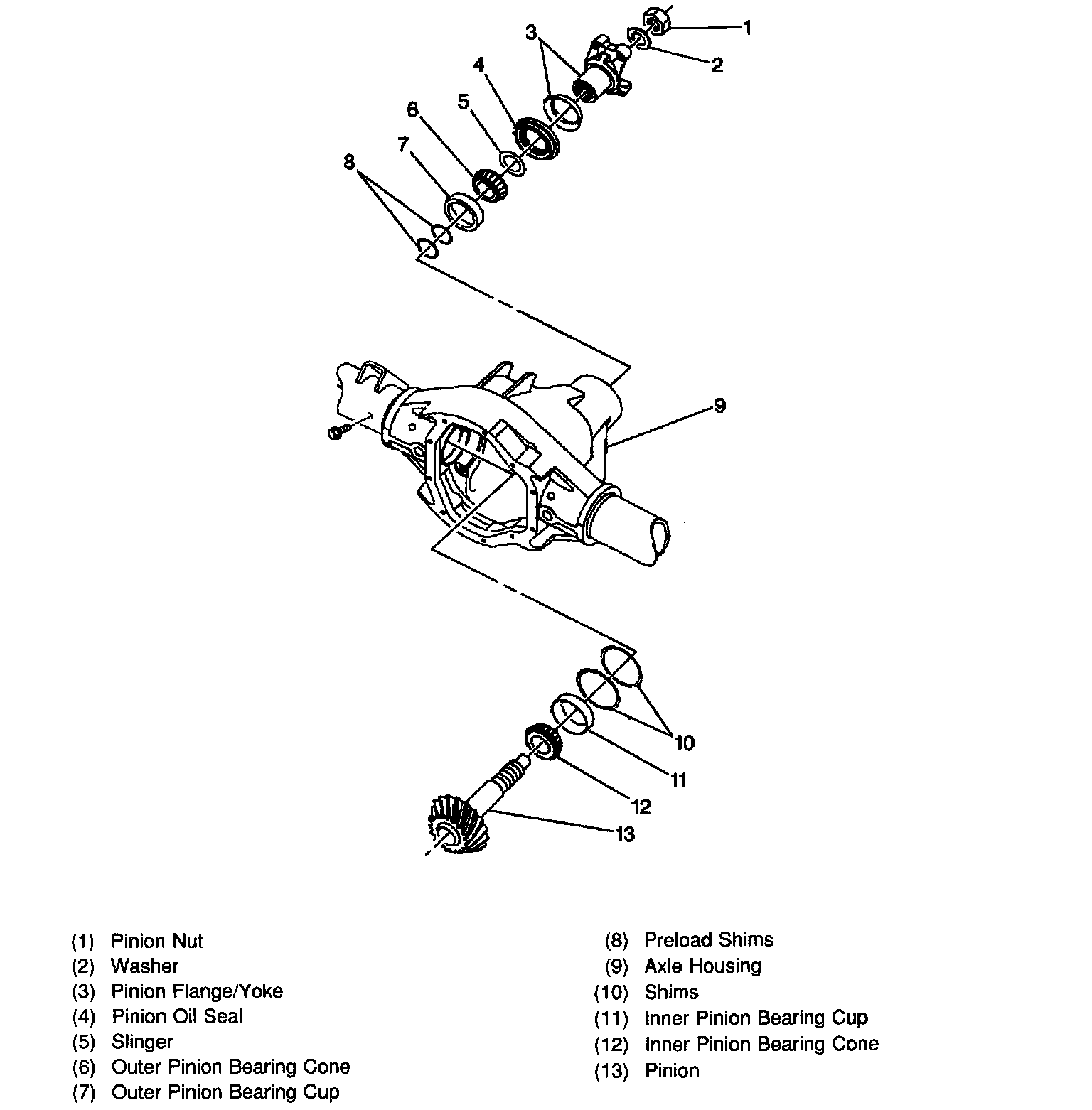

8.6 9 1/2 Rear Axle Differential Pinion Disassemble
8.6 9 1/2 Rear Axle Differential Pinion Disassemble
