Home
>>
Chevy Truck
>>
2000
>>
K Tahoe 4WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case
>>
NVG 243-NP1 (Two Speed Selectable)
>>

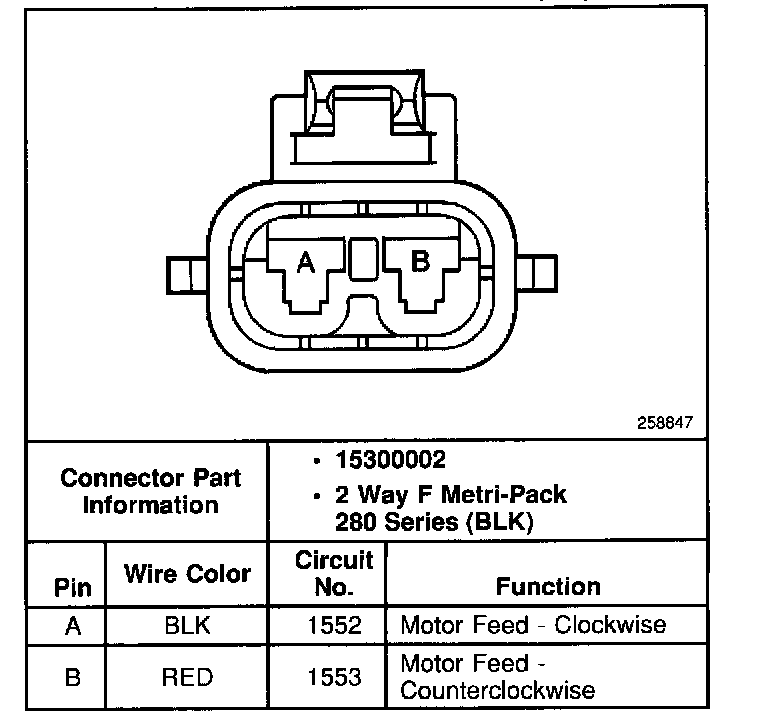

Transfer Case Shift Motor (C1)
Transfer Case Shift Motor (C1)
