Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2000
>>
K Tahoe 4WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
>>
Headlamp Control Module
>>
Headlamp Control Module C2
Headlamp Control Module C2

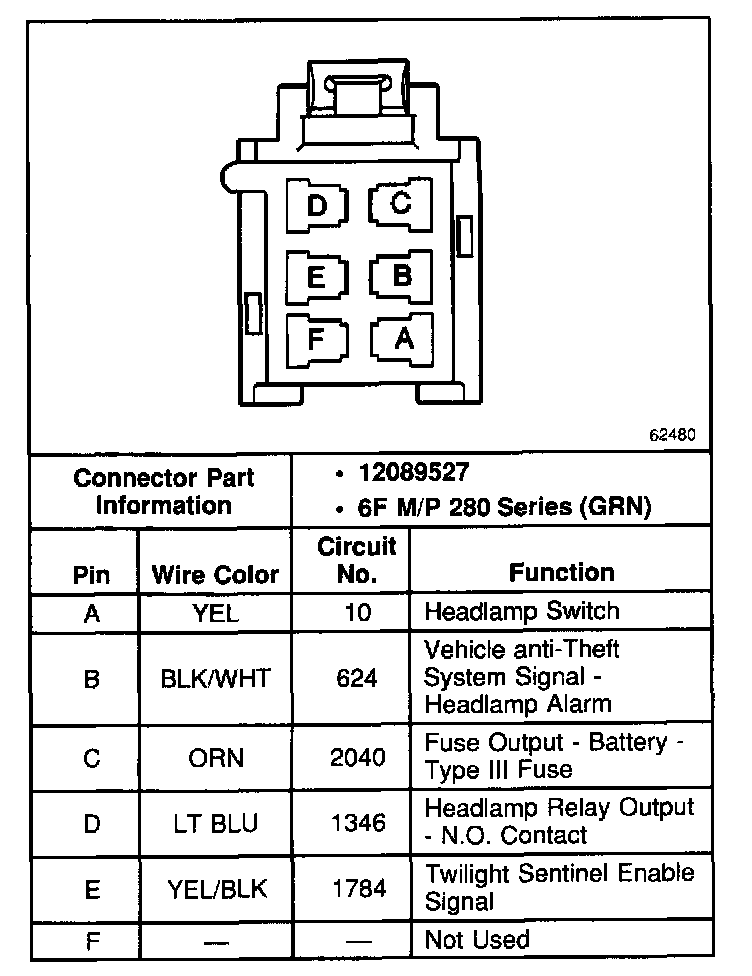

Headlamp Control Module C2:
