Chevy Truck
>>
2000
>>
K Tahoe 4WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Auxiliary Heater Control Switch
Auxiliary Heater Control Switch

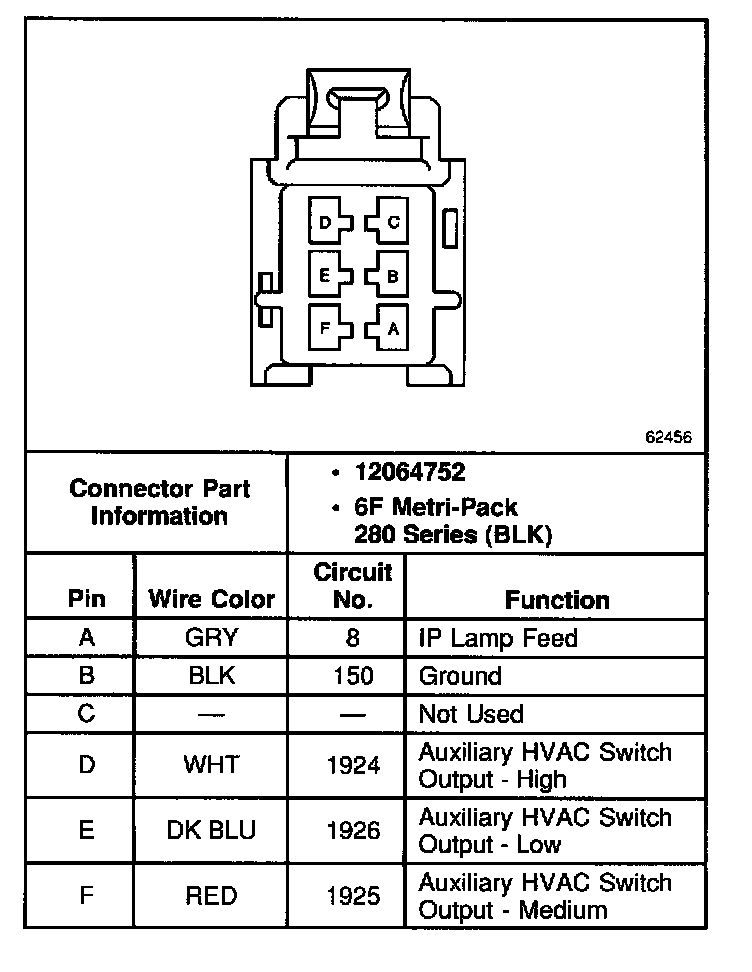

Auxiliary Heater Control Switch:
