Rear Dual Wheel Fender Replacement

Rear Dual Wheel Fender Replacement

Removal Procedure

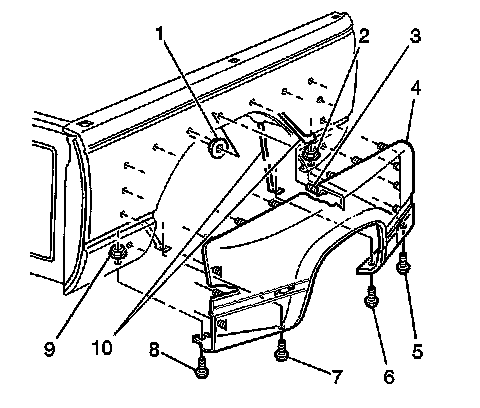

1. Remove the wiring connector from the sidemarker.




2. Remove the fender (4) from the side panel bolts.
3. Remove the fender from the brace bolts. (6,7)
4. Remove the wheelhouse filler panel and the bolts.
5. Remove the nuts (1) from the fender studs.
6. Remove the fender from the side panel.



Installation Procedure






Notice: Refer to Fastener Notice in Service Precautions.

1. Install the fender (4) to the side panel with the bolts.

Tighten the fender to the side panel bolts to 25 N.m (18 lb ft).

2. Install the nuts (1) to the fender studs.

Tighten the nuts to the fender studs to 25 N.m (18 lb ft).

3. Install the wheelhouse filler panel with the bolts.
4. Install the fender to the brace bolts (6,7).

Tighten the fender to the brace bolts to 25 N.m (18 lb ft).

5. Install the wiring connector to the sidemarker.
