Shifter Transfer Case: Service and Repair

Removal Procedure





1. Remove the shift rod from the shift control. Refer to Shift Lever Replacement - On Vehicle (Drivers shift Control Lever) or Shift Lever Replacement - On Vehicle (Shift Linkage).
2. Remove the shift knob from the transfer case shift lever.

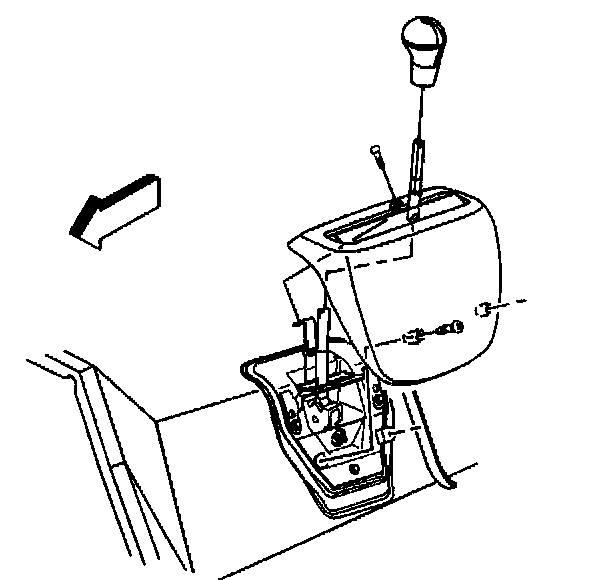

3. Remove three screws securing the shift control bezel from the shift control.

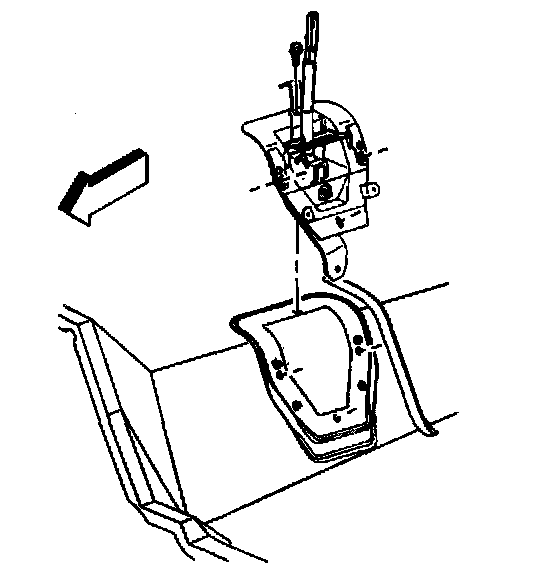

4. Remove four bolts securing the shift control to the floor panel and support bracket.

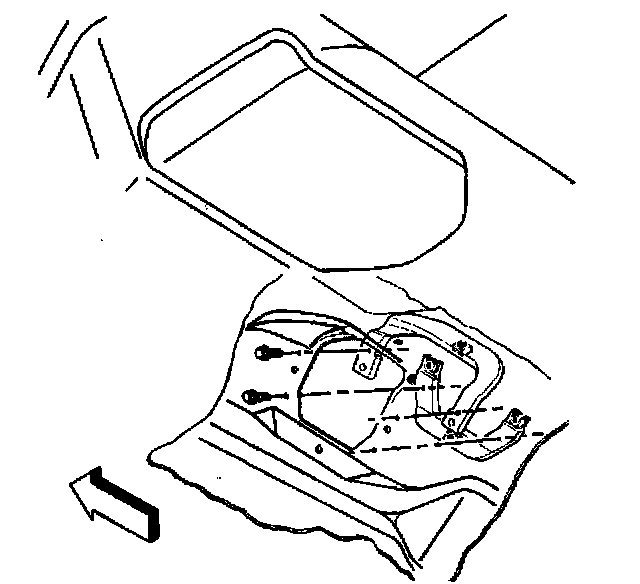

5. If required, remove the four screws securing the support bracket to the floor panel.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.

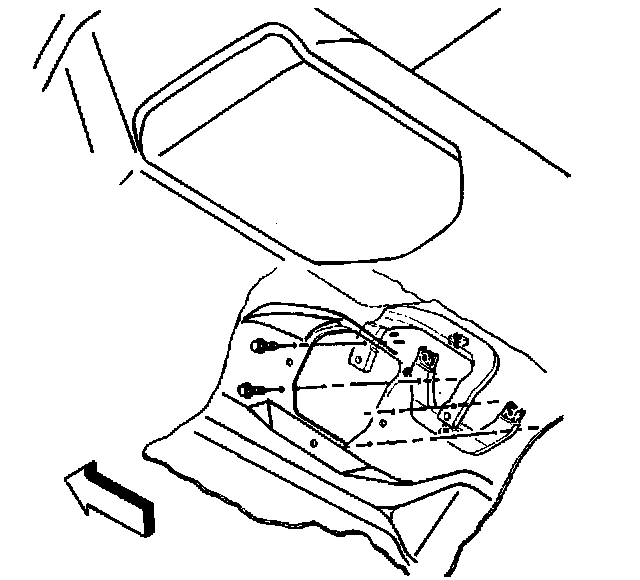

1. If removed, install the four screws securing the support bracket to the floor panel.
Tighten the screws to 2 Nm (18 inch lbs.).

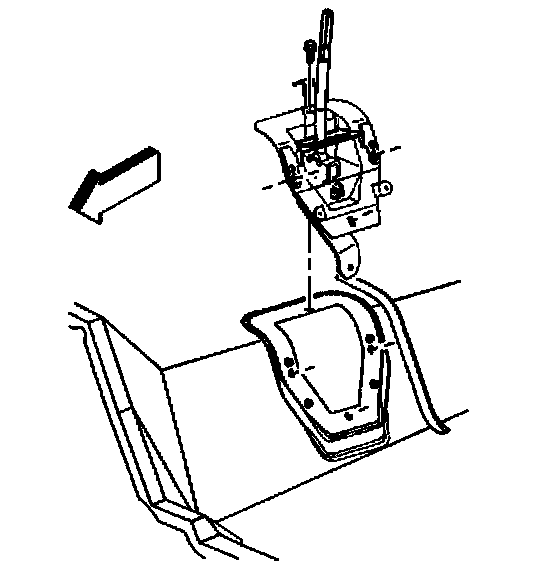

2. Install the four bolts securing the shift control to the floor panel and support bracket.
Tighten the screws to 12 Nm (9 ft. lbs.).

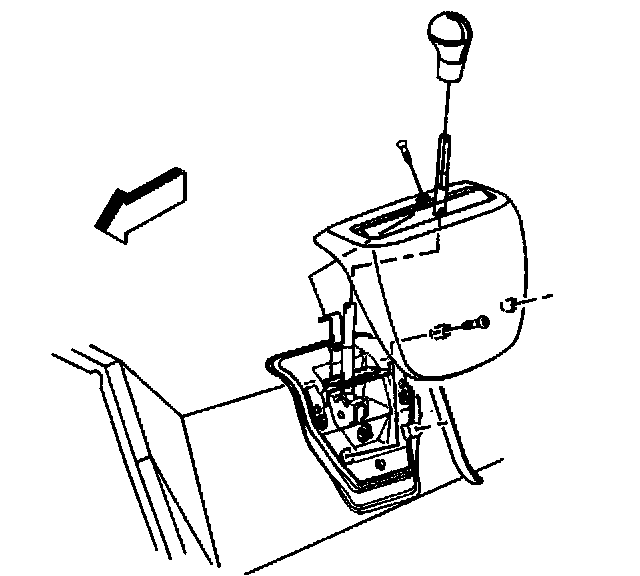

3. Install the three screws securing the shift control bezel to the shift control.
Tighten the screws to 2 Nm (18 inch lbs.).
4. Install the shift knob to the transfer case shift lever.
5. Install the shift rod to the shift control. Refer to Shift Lever Replacement - On Vehicle (Drivers shift Control Lever) or Shift Lever Replacement -On Vehicle
