NVG 261-NP2 (Two Speed Manual)

Removal Procedure





1. Remove the transfer case. Refer to Transfer Case Replacement.

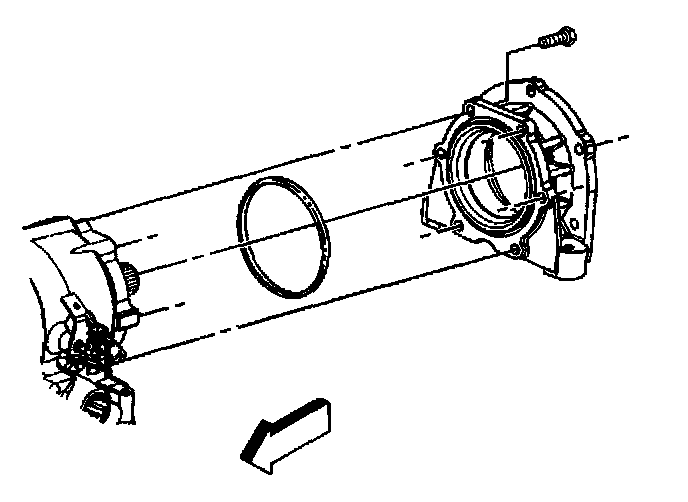

2. For vehicles equipped with automatic transmission 41-60-E, remove the 6 bolts securing the adapter and the seal to the transmission.

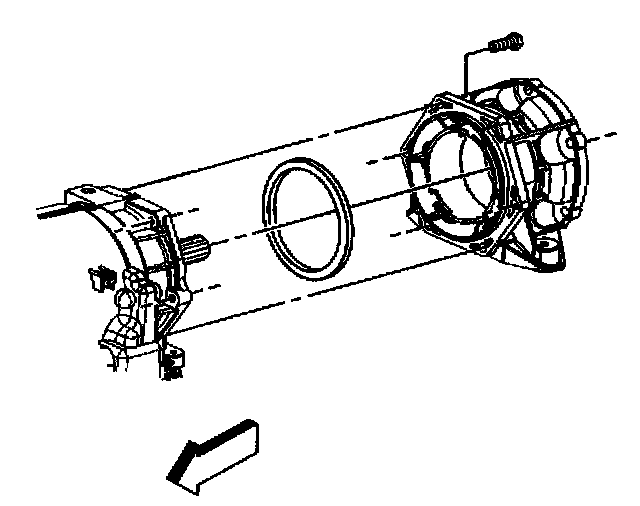

3. For vehicles equipped with automatic transmission 4L80-E, remove the 6 bolts securing the adapter and the seal to the transmission.


Installation Procedure

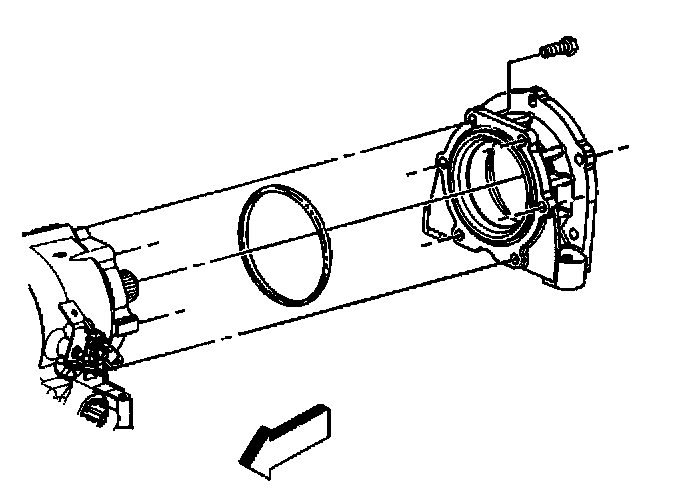

1. For vehicles equipped with the 4L60-E automatic transmission, lubricate the seal mating surface area with oil GM P/N 12346143.
2. Install the adapter and seal to the transmission.

Notice: Refer to Fastener Notice

3. Install the 6 bolts securing the adapter to the transmission.
Tighten the adapter bolts to 50 Nm (37 ft. lbs.).

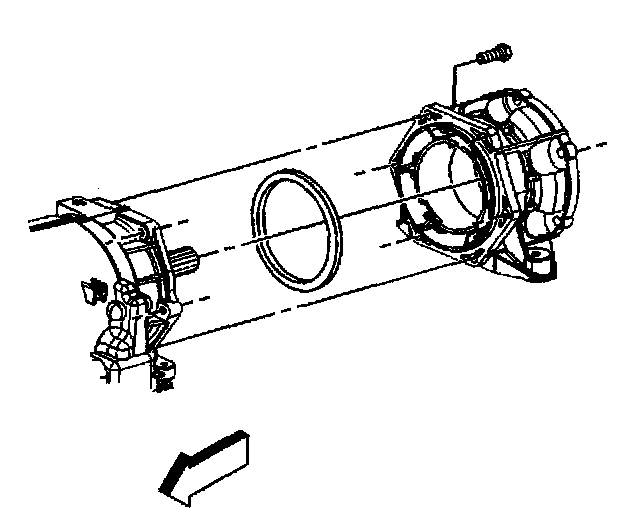

4. For vehicles equipped with the 4L80-E automatic transmission, lubricate the seal mating surface area with oil GM P/N 12346143.
5. Install the adapter and seal to the transmission.
6. Install the 6 bolts securing the adapter to the transmission.
Tighten the adapter bolts to 50 Nm (37 ft. lbs.).
7. Install the transfer case. Refer to Transfer Case Replacement.
