Chevy Truck
>>
2000
>>
K Tahoe 4WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
Power Seats Schematics
>>
Driver Side - 4DR Only
Driver Side - 4DR Only

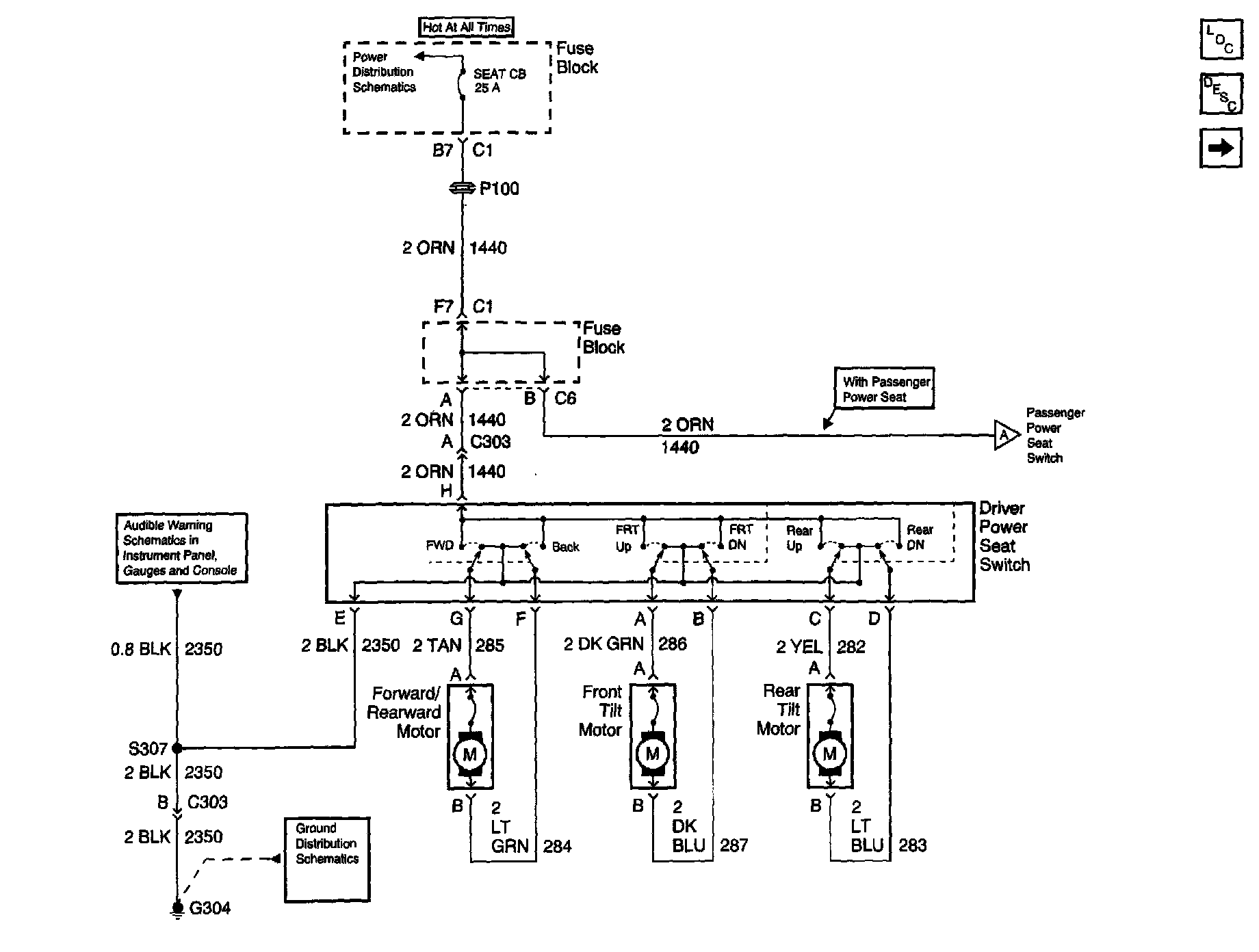

Power Seats Schematics: Driver Side - 4DR Only:
