Chevy Truck
>>
2000
>>
K Tahoe 4WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case
>>
Transfer Case Actuator
>>

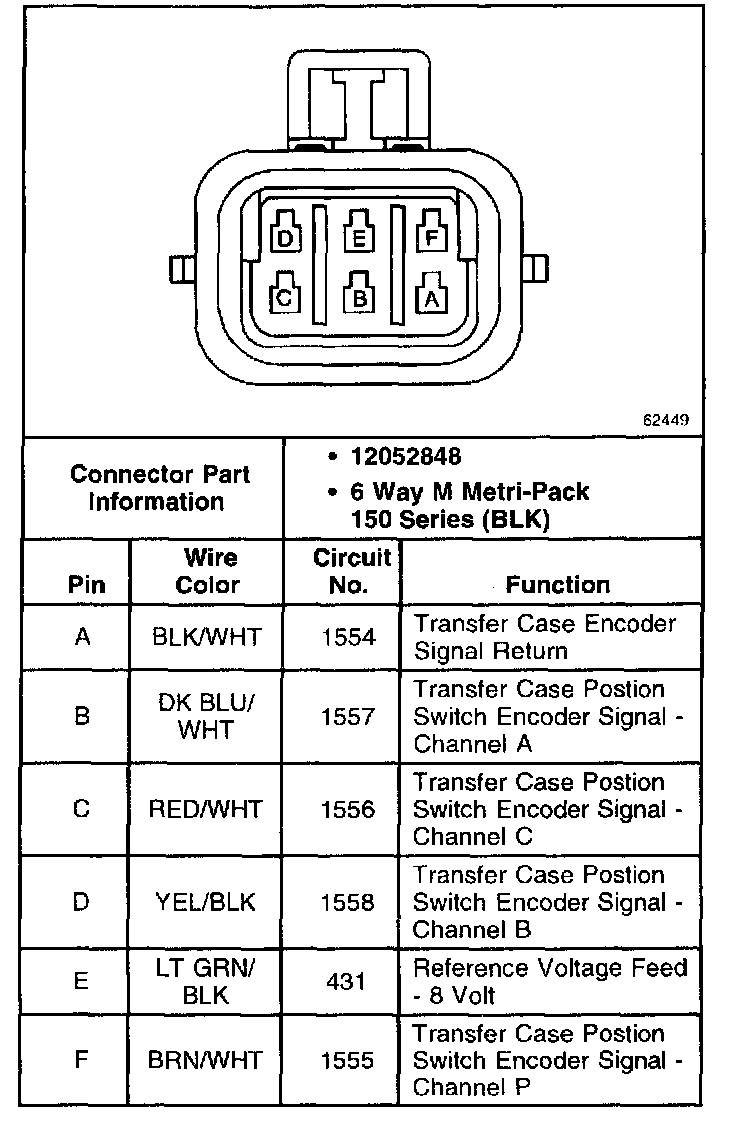

Transfer Case - Encoder Motor - C-2
Transfer Case - Encoder Motor - C-2
