Chevy Truck
>>
2000
>>
K Tahoe 4WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
C-8 Engine Wiring Harness Junction Block
C-8 Engine Wiring Harness Junction Block

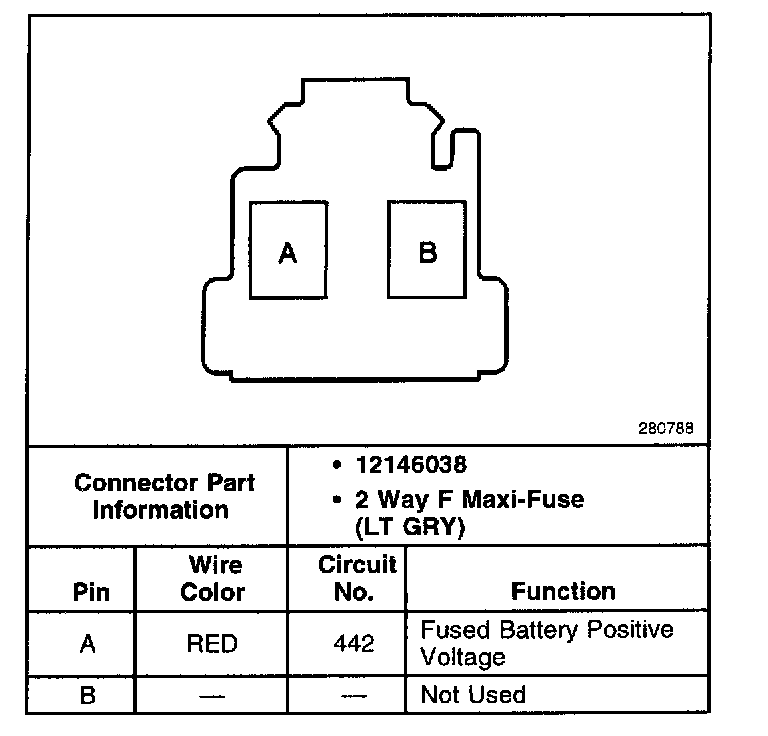

C-8 Engine Wiring Harness Junction Block:
