Chevy Truck
>>
2000
>>
K Tahoe 4WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Blower Motor Relay
>>
Automatic A/C
>>

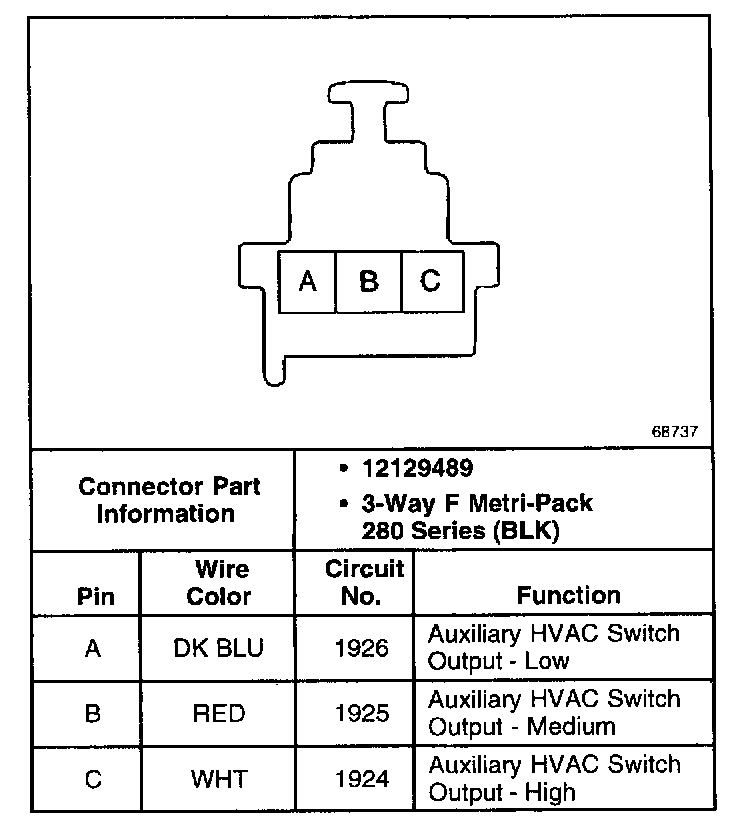

C1-Rear Auxiliary Blower Motor Resistor Relay Assembly (Manual)
C1-Rear Auxiliary Blower Motor Resistor Relay Assembly (Manual)
C1-Rear Auxiliary Blower Motor Resistor Relay Assembly (Manual):
